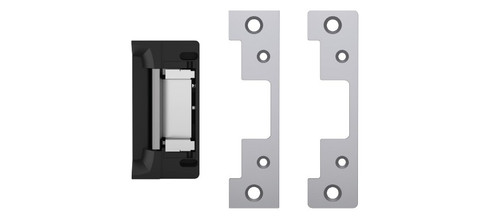

HES-5200C 630 5200c Electric Strike Kit

HES 5200C 630 Grade 1 Complete Electric Strike with horizontal adjustability - Satin Stainless

Includes the 501 and 501A face plates in the box

The 5200 series electric strikes feature an in-frame horizontal adjustable design to simplify the installation process. This feature allows the installer to easily adjust the electric strike opening to accomodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 3/4" throw.

Frame application
Metal, Wood

Electrical:
.24 Amps @ 12VDC/VAC
.12 Amps @ 24VDC/VAC
DC continuous duty/AC intermittent duty only

Standard Features

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

Field selectable fail secure/ fail safe

Dual voltage 12 or 24 VDC/VAC

In-frame horizontal adjustment

Non-handed

Internally mounted solenoid

Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)

Strike body depth 1-3/16"

Plug-in connector

Trim enhancer included

Five year limited warranty

Finishes: 630 - Satin stainless
