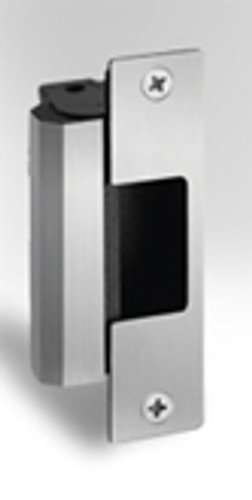

HES 1006 Series Electric Strike (Body ONLY)

*** SALE ON THIS PAGE IS A 1006 BODY ONLY. NO FACEPLATES ***

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

The 1006 Series is also available in a Complete One Box Solution:

• 1006CDB Complete Pac


• 1006CLB Complete Pac


• 1006CS Smart Strike®

- Select Function: Fail Secure or Fail Safe.
- Select Optional Features: Latchbolt Monitor (LBM) or Latchbolt Strike Monitor (LBSM).
- Select Finish: Satin Stainless Steel (630), Bronze Toned (613), or Black (BLK).
- Select Faceplate (Optional): See "Companion Items" below.

Specifications

• UL 10C fire-rated, 3 hour single door (fail secure only)


• UL 10C fire-rated, 1-1/2 hour double door (fail secure only)


• CAN4-S104(ULC-S104) fire door conformant


• ANSI A250.13-2003 windstorm listed


• UL 1034 burglary-resistant listed and suitable for outdoor use


• UL 295 (6th Edition) listed


• ANSI/BHMA A156.31, Grade 1


• NFPA-252 fire door conformant


• ASTM-E152 fire door conformant


• MEA New York City accepted


• Florida Building Code approved


• Patents #6,021,038 & 6,595,564 & 9,183,976

Frame application

• Metal


• Wood

Electrical

• .45 Amps at 12VDC* continuous duty


• .25 Amps at 24VDC* continuous duty


• *Note: DC must be well filtered with ripple less than 1 volt RMS.

Standard Features

• Stainless steel construction


• Tamper resistant


• Static strength 3070 lbs. (fail secure)


• Dynamic strength 350 ft-lbs. (fail secure)


• Endurance 1,000,000 cycles


• Fail secure (standard)


• Dual voltage 12 or 24VDC continuous duty


• Non-handed


• Internally mounted solenoid


• Accommodates up to 1" deadbolt


• Plug-in connector


• Full keeper shims for horizontal adjustment


• Trim enhancer


• Five year limited warranty

Search for Faceplate Options Below. Search our site or let us know if you need help finding it on our site.

• J (4-7/8" x 1-1/4") For use with cylindrical locksets up to 3/4" throw and all locksets with center-lined bolts. ANSI/BHMA Numbers: #E09321, #E09322, #E09323


• E (4-7/8" x 1-1/4") For use with Corbin/Russwin Security Bolt, Weiserbolt, and normally extended 1" tubular deadbolts. ANSI/BHMA Numbers: #E09391, #E09392, #E09393


• K (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned above the latchbolt. Compatible Locksets: Baldwin, Marks, PDQ, Others. ANSI/BHMA Numbers: #E09321, #E09322, #E09323


• KD (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned above the latchbolt. Compatible Locksets: Jackson, Sargent (7700 & 8100), Schlage, Yale (8700). ANSI/BHMA Numbers: #E09321, #E09322, #E09323


• KM (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned below the latchbolt. Compatible Locksets: Accurate, Arrow, Best*, Corbin/Russwin, Falcon (1992 M Series), Sargent (7800, 8200 & 9200 series), Yale (8800) *For Best 45H &?47H deadlatch below, and Best 34H - 37H?deadlatch above. ANSI/BHMA Numbers: #E09321, #E09322, #E09323


• N (4-7/8" x 1-1/4") For use with Mortise locksets where the deadbolt is used for night-latch function only. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Others. ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• ND (4-7/8" x 1-1/4") For use with Mortise locksets where the deadbolt is used for night-latch function only. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700). ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• NM (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned below the latchbolt and where the deadbolt is used for night-latch function only. Compatible Locksets: Best (45H?&?47H, and 34H-37H), Corbin/Russwin, Falcon, Sargent (7800, 8200 & 9200 series). ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• A (4-7/8" x 1-1/4") For use with Mortise locksets with a normally extended 1" deadbolt without a deadlatch. Compatible Locksets: Arrow, Baldwin, Marks, Omnia, PDQ, Others. ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• AD (4-7/8" x 1-1/4") For use with Mortise locksets with a normally extended 1" deadbolt without a deadlatch. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700). ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• AM (4-7/8" x 1-1/4") For use with Mortise locksets with a normally extended 1" deadbolt and a deadlatch positioned below the latchbolt. Compatible Locksets: Accurate, Best (45H?&?47H, and 34H-37H), Corbin/Russwin, Falcon, Sargent (7800, 8200, & 9200 series), Yale (8800). ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• T (4-7/8" x 1-1/4") For use with Mortise locksets with a normally extended 1" deadbolt and a center-lined deadlatch. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Others. ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• TD (4-7/8" x 1-1/4") For use with Mortise locksets with a normally extended 1" deadbolt and a center-lined deadlatch. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700). ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• H (4-7/8" x 1-1/4") For use with Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Arrow, Baldwin, Marks, Omnia, PDQ, Others. ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• HD (4-7/8" x 1-1/4") For use with Mortise locksets with a 1" deadbolt without a deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700). ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• HM (4-7/8" x 1-1/4") For use with Mortise locksets with a 1" deadbolt with a deadlatch positioned below the latchbolt. Strike will not release when deadbolt is extended. Compatible Locksets: Accurate, Best (45H?&?47H, and 34H-37H), Corbin/Russwin, Falcon, Sargent (7800, 8200, & 9200 series), Yale (8800). ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• HT (4-7/8" x 1-1/4") For use with ASSA model 504 mortise lockset with two latchbolts and a center deadlatch. Deadlatch or mortise locksets with a 1" deadbolt and a center-lined deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: ASSA. ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• HTD (4-7/8" x 1-1/4") For use with Mortise locksets with a 1" deadbolt and a center-lined deadlatch. Strike will not release when deadbolt is extended. Compatible Locksets: Sargent (7700 & 8100 series), Yale (8700). ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• R (4-7/8" x 1-1/4") For use with a hookbolt up to 1" throw. Compatible Locksets: Adams Rite, Others. ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• Z (4-7/8" x 1-1/4") For use with unit and mono locks. Compatible Locksets: Unican, Sargent, Corbin-Russwin. ANSI/BHMA?Numbers: #E09321, #E09322, #E09323


• J2 (9" x 1-3/8) For use with cylindrical locksets with up to a 3/4" throw, in wood frame applications. ANSI/BHMA?Numbers: #E09321, #E09322, #E09323


• K2 (9" x 1-3/8") For use with Mortise locksets with a deadlatch positioned above the latchbolt, in wood frame applications. Compatible Locksets: Baldwin, Marks, PDQ, Others. ANSI/BHMA Numbers: #E09321, #E09322, #E09323


• KM-2 (9" x 1-3/8") For use with Mortise locksets with a deadlatch positioned below the latchbolt, in wood frame applications. Compatible Locksets: Accurate, Arrow, Best*, Corbin/Russwin, Falcon (1992 M Series), Sargent (7800, 8200 & 9200 series), Yale (8800). *For Best 45H &?47H deadlatch below, and Best 34H - 37H?deadlatch above. ANSI/BHMA Numbers: #E09321, #E09322, #E09323


• N-2 (9" x 1-3/8") For use with Mortise locksets where the deadbolt is used for night-latch function only, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale (8700), Others. ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• T-2 (9" x 1-3/8") For use with Mortise locksets with a normally extended 1" deadbolt and a center-lined deadlatch, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale (8700), Others. ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• A-2 (9" x 1-3/8") For use with Mortise locksets with a normally extended 1" deadbolt without a deadlatch, in wood frame applications. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale, Others. ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333


• H-2 (9" x 1-3/8") For use with Mortise locksets with a 1" deadbolt without a deadlatch, in wood frame applications. Strike will not release when deadbolt is extended. Compatible Locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Yale (8700). ANSI/BHMA?Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333
