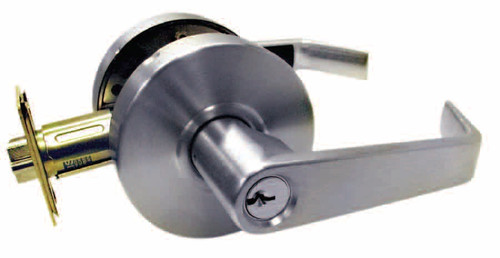

General Locks LX200 Series Rigid S Levers - LX253S - Entry - Square Corner - Brushed Chrome
- Brand
- General Lock
- SKU:
- LX253S-626-C-234-S-F109
- Condition:
- New
Dead locking latch bolt operated by knob/lever from either side except when outside knob/lever is locked by the push or turn button inside. Key outside or operating inside knob/lever releases push or turn button unlocking outside knob/ lever except when push or turn button has been rotated to keep outside knob/lever locked. Inside push or turn button must be manually operated to unlock outside knob/lever. Inside knob/lever always operates latch bolt.
STANDARD FEATURES:
CERTIFICATIONS: ANSI A156.2 Grade 2, UL Listed 3-hr, ADA and title 19 California Fire Marshal.
MECHANISM: cold-rolled steel chassis housing reversible & non-handed lever available clutched or rigid with separate lever spring mechanism to prevent sagging and droop
DOOR THICKNESS: 1-3/8” to 1-3/4”
BACKSET: 2-3/4”
STRIKE: 1-1/4” x 4-7/8”, ANSI strike, square corner
LATCH: 2-1/4” x 1-1/8”, square corner face plate, 1/2” throw, UL Listed 3-hr
THROUGH-BOLTS: Removeable through-bolts, (Without throughbolts, the lock is NOT Grade 2 compliant)
CYLINDER: Drilled 6, pinned 6 solid brass cylinder with Schlage keyway, keyed differently, 2 cut keys
SFIC CORE: Prepped for either 6-pin or 7-pin SFIC core.
TRIM: 3-5/16” rose diameter for “S” style lever, lever return is 3/8” from door, ”P” and “B” knob styles
