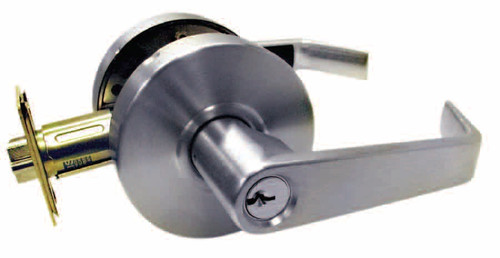

General Locks L2 Series Clutched Standard Key In Lever with S Levers - L270S - Classroom - Square Corner - Brushed Chrome
- General Lock
Dead locking latch bolt operated by knob/lever from either side except when outside knob/lever is locked from outside by key. Inside knob/lever always operative.
CERTIFICATIONS: ANSI A156.2 Grade 2, UL Listed 3-hr, ADA and title 19 California Fire Marshal.
MECHANISM: cold-rolled steel chassis housing reversible & non-handed lever available clutched or rigid with separate lever spring mechanism to prevent sagging and droop
DOOR THICKNESS: 1-3/8” to 1-3/4”
STRIKE: 1-1/4” x 4-7/8”, ANSI strike, square corner
LATCH: 2-1/4” x 1-1/8”, square corner face plate, 1/2” throw, UL Listed 3-hr
THROUGH-BOLTS: Removeable through-bolts, (Without throughbolts, the lock is NOT Grade 2 compliant)
CYLINDER: Drilled 6, pinned 6 solid brass cylinder with Schlage keyway, keyed differently, 2 cut keys included
TRIM: 3-5/16” rose diameter for “S” style lever, lever return is 3/8” from door, ”P” and “B” knob styles
