GM9153 RR 630 C MORTISE ENTRY W/BOLT ROSE/LEVER

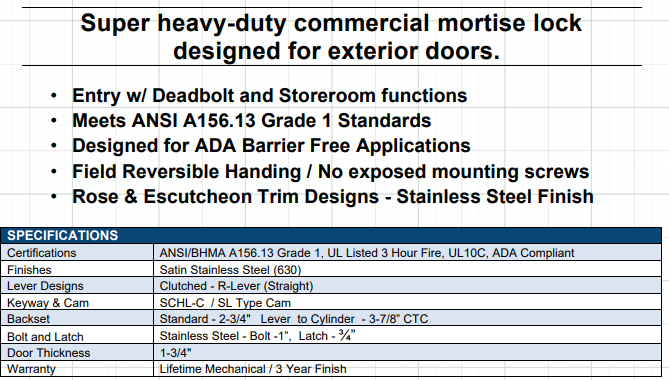

Super heavy-duty commercial mortise lock
with deadbolt designed for exterior doors.
 Meets ANSI A156.13 Grade 1 Standards
 Designed for ADA Barrier Free Applications
 Field Reversible Handing
 Rose & Escutcheon Trim Designs - Stainless Steel Finish
 No exposed mounting screws

SPECIFICATIONS:

Certifications- ANSI/BHMA A156.13 Grade 1, UL Listed 3 Hour Fire, UL10C, ADA Compliant

Finishes- Satin Stainless Steel (630)

Lever Designs- Clutched - R-Lever (Straight)

Keyway- SCHL-C

Backset- Standard - 2-3/4” Lever to Cylinder - 3-7/8” C

Bolt and Latch- Stainless Steel - Bolt -1”, Latch - 3/4”

Door Thickness- 1-3/4”

Warranty Lifetime Mechanical / 3 Year Finish
