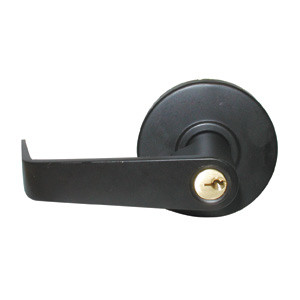

General Lock Entry Lock, S Lever Design, 2-3/8" Backset, Schlage C Keyway, ANSI Strike, Grade 2-2

Commercial Cylindrical Entry Lockset

Function

Operated by lever from either side except when the outside lever is locked by the push/turn button inside, in which case the key is needed to open from the outside. When locked by pushing the button in (and not turning the button), turning the key, or turning the inside lever, the latch is retracted and the button is returned back to the unlocked position. When locked by pushing and turning the button, turning the key (or turning the inside lever) retracts the latch but the lock remains locked.

Features

· ANSI A156.2 - 2003 Grade 2 Certified

· UL 3-hour rating

· 6 pin universal Schlage “C” cylinder. Cylinder can be changed to other keyways (cylinders offered separately) to integrate into many other commercial keying systems.

· Thru-bolted to minimize sag and strengthen installation

· With the clutched version (L2 series), the outside lever turns even when the lock is locked, increasing security and minimizing vandalism. For a rigid (non-clutched) lockset, use the LX2 series.

· 25 year mechanical warranty, 5 year finish warranty
