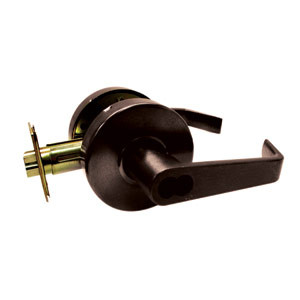

General Lock Entry Lock, S Lever Design, 2-3/4" Backset, Prepared for SFIC (Less Core), ANSI Strike, Grade 2

Commercial Cylindrical Entry Lockset

Function

Operated by lever from either side except when the
outside lever is locked by the push/turn button inside, in which case the key is
needed to open from the outside. When locked by pushing the button in (and not
turning the button), turning the key, or turning the inside lever, the latch is
retracted and the button is returned back to the unlocked position. When locked
by pushing and turning the button, turning the key (or turning the inside
lever) retracts the latch but the lock remains locked.

Features

·
ANSI A156.2 - 2003 Grade 2 Certified

·
UL 3-hour rating

·
6 pin universal Schlage “C” cylinder. Cylinder can be changed to
other keyways (cylinders offered separately) to integrate into many other
commercial keying systems.

·
Thru-bolted to minimize sag and strengthen installation

· With
the clutched version (L2 series), the outside lever turns even when the lock is
locked, increasing security and minimizing vandalism. For a rigid
(non-clutched) lockset, use the LX2 series.

·
25 year mechanical warranty, 5 year finish warranty
