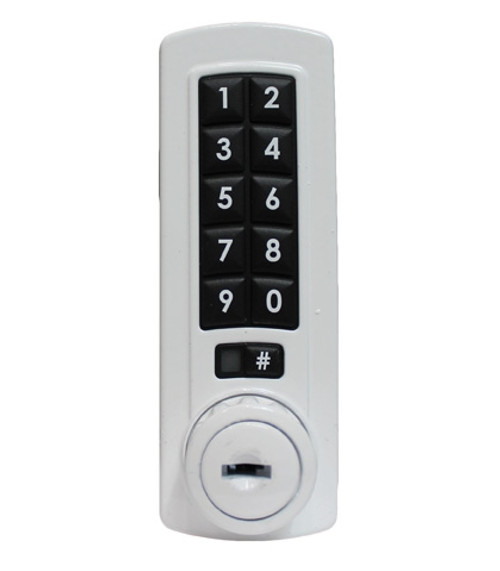

GE370 Gemini Electronic Keypad Combination Cabinet Lock

The Gemini GE370 is a vertical battery powered cam lock that can be flush fitted or surface mounted, giving it the versatility to fit your situation. This lock is well suited for doors, drawers, cabinets and cases or simply retrofitting an existing cam lock. If a user forgets their code, the master code reprograms a new one. There’s a key override that will unlock the lock too. An LED light will indicate a low battery. Available in three finishes and vertical or horizontal keypad models.

Management of the lock is easy with an 8-digit master code that may be used to reprogram the lock, a 6-digit technician code that may access the lock but lacks the ability to reprogram it, and a standard 4-digit user code which only accesses the lock. When multiple locks are used, in a locker room or other storage space for example, the same technician code can be programmed to every lock, thus removing the hassle for the technician to have a list of every user code in the space.

Electronic Keypad Cam Lock

• Public and private user modes


• Can be flush fitted or surface mounted


• Key override


• Secured with 2 x M4 pan head screws


• LED indicator lights with battery condition indicator


• Technician code


• Zinc alloy and ABS construction


• Powder coated finish


• For internal use

10 Button Keypad

• 8 digit master code – can reprogram the lock


• 6 digit technician code – can access the lock but not reprogram it, useful for multiple lock applications


• 4 digit user code – can access the lock


•















































  Dimensions	94 (L) x 32 (D) x 32 (H) mm
  Code Length	8 digit master code, 6 digit sub-master code, 4 digit user code
  Code Capacity	3
  Locking Device	Cam
  Access Type	Keypad – Digits
  Door Opening	Specialized
  Construction	ABS Plastic, Zinc Alloy
  Keys	2
  Battery Type	1/2 AA Features Electronic cam lock Public and private user modes Can be flush fitted or surface mounted Emergency Key Override (7 Disc Barrel) LED Indicator Lights 10 Button Keypad: 8-digit master code 6-digit sub-master code 4-digit user code Technician Mode Secured with 2 x M4 Pan Head Screws Options Keypad Direction: Vertical (V), Right Handed Horizontal (R), Left Handed Horizontal (L)* Finishes: Silver (S), Black (B), White (W) Dimensions & Specifications Dimensions: 3 3/4” L x 1 5/16 W x 1 3/8” D Power: 1/2 AA Battery Low Battery: LED indicator lights with battery condition indicator Material: Zinc Alloy and ABS Construction Finish: Powder coated For Internal Use Order Number GE370 Resources Download Instructions Download Spec Sheet
  Environmental	Indoor
  Brand	LockeyUSA
  Manufacturer	LockeyUSA
  Weight	2 lbs
  Warranty	3 Year Electronics
