Falcon / 24 Series Exit Devices25-R-EO 3 313AN — Falcon Exit Device 25 Series Exit Device, Rim, Exit Only, 3 Ft. Device, Dark Bronze Anodized Aluminum
- Brand
- Falcon
- SKU:
- 25-R-EO 3 313AN
- Condition:
- New
Falcon / 24 Series Exit Devices
25-R-EO 3 313AN — Falcon Exit Device
25 Series Exit Device, Rim, Exit Only, 3 Ft. Device, Dark Bronze Anodized Aluminum
The 24/25 Series are architectural narrow and wide stile push pad exit devices that provide quality, durability and a polished aesthetic at an affordable price.onomical alternative that incorporates a modern touch bar styling for any door type.
The 24/25 Series heavy-duty architectural push pad exit devices provide quick, easy egress suitable for various applications. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so the exit devices must be able to perform under continual use and abuse. The 24/25 Series exit devices out-perform competitors and are offered at a reasonable price. The ANSI/BHMA Grade 1 certified exit devices feature a sleek, streamlined styling and smart solutions for any building design while assuring egress in case of an emergency.

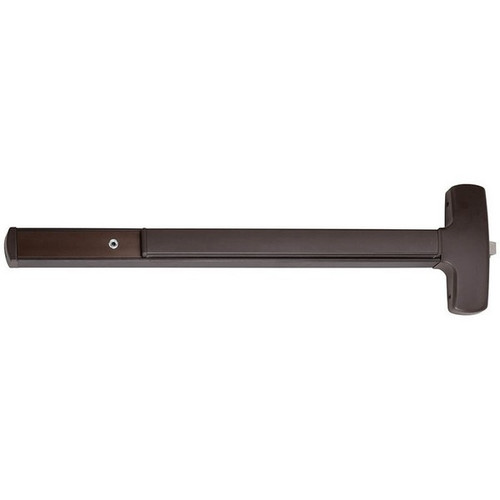

Falcon 25R-EO Rim Exit Device (Monarch)
• Maximum flexibility in a variety of applications
• Wide range of features and options
• Patent pending deadlocking technology
• Frequent traffic
• Offices, churches, hospitality, retail, education, healthcare
• Interior, exterior, new construction, retro-fit
• 10-year warranty
Hand: Non-handed
Strikes: 299 strike standard.
Latchbolt: Stainless steel, 3⁄4" throw.
Deadlocking latchbolt: Standard.
Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.
Cylinder dogging: Specify “CD” prefix. Uses 1 1 ⁄ 8" long mortise cylinder with standard cam
Doors: 1 3⁄4" thick, wood or metal.
Projections: 2 3⁄4" maximum, 2" dogged.
Mounting height: 40 1 ⁄4" from CL to finished floor.
Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
Sex bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.
ANSI: Certified ANSI A156.3-2001 grade 1 standards.
Center case & working parts: Center case is heavy wrought and sintered metal parts.
Model: Falcon 25R-EO, 25-R-EO, 25REO, 25 R EO , 25 R EO
| Technical | |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Device Length | 36 In. |
| Dogging Options | Hex Key Dogging |
| Includes Trim | No |
| Fire Rated | No |
*The image may not represent the actual product or finish
