Falcon / 24 Series Exit Devices 24-R-EO 4 US32D — Falcon Exit Device 24 Series Exit Device, Rim, Exit Only, 4 Ft. Device, Satin Stainless Steel

Falcon / 24 Series Exit Devices

24-R-EO 4 US32D — Falcon Exit Device

24 Series Exit Device, Rim, Exit Only, 4 Ft. Device, Satin Stainless Steel

The perfectly simple, tougher than nails, costs less than you think, fits anywhere exit device.

Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door
hardware must be able to take continual use and abuse. The Falcon 24 and 25 Series exit devices fill the bill with some
of the toughest, most reliable performance in the business. A host of features makes this a smart solution, like a choice
of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling
and a choice of wide (25 Series) and narrow stile (24 Series) device applications mean a smart solution for your
building design, as well as its use. And since they’re backed by one of the best names in the business, you can be sure
you’re getting the utmost value, reliability, and durability.

PRODUCT DESCRIPTION

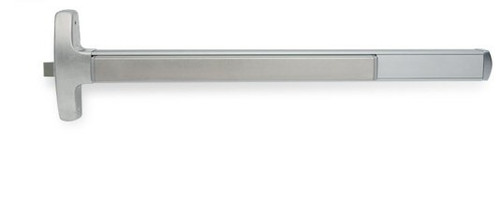

F-24-R-EO-US32D-4 Falcon 24 Series Exit Only Fire Rated Rim Exit Device in Satin Stainless Steel Finish

This device is for a 48" door

The Falcon F-24-R-EO-US32D-4 series of exit devices for all types of single and double door applications. The Falcon F-24 Series exit devices combine sleek styling and durability with the protection of a fire-rated device. The Falcon F-24-R Series narrow style design allows for installation versatility with a single-point and rim type latch. These F-24-R Series are certified to ANSI A156.3-2001 Grade 1 standards.

Features and Benefits:

• Satin Stainless Steel finish


• Cylinders are not included


• Handing: Nonhanded


• Includes no trim


• Latchbolt: Stainless steel, 3/4" throw


• Device Lengths: 4 feet (48 inches)


• Doors: 1-3/4" thick, wood or metal door


• Projections: 2-3/4" maximum


• Strike: 299F strike standard


• Fire-rated hardware


• Mounting height: 40" from CL to finished floor


• Fasteners: All mounting screws are concealed


• Center case and working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts.


•


  Features;




  Streamlined design includes
  flush-end cap for clean lines
  and more attractive installation.




  Clean design with no
  exposed screws or rivets
  on the back of the device




  One trim input design
  for maximum versatility.




  Patent-pending
  deadlocking technology
  ensures reliable security.




  Extruded aluminum
  construction delivers
  greater strength and
  impact resistance.




*The image may not represent the actual product or finish
