ESSEX iRox IP Series Rugged Ethernet High Frequency IP iCLASS SE® Reader

Essex iRox^™ IP Series are extremely rugged (RFID) communication devices designed specifically for vandal prone areas and extremely harsh environments. IP65 and IK10 rated, iRox IP readers feature stainless steel construction, circuit assembly encapsulation and Genuine HID Technology^™ in a tamper resistant, low profile design. iRox^™ IP communicates over Ethernet sending Weigand card data and receiving audio/LED feedback. A built in auxiliary switch input is provided to connect an auxiliary piezoelectric or mechanical switch with wiring full four state switch supervision.

The iRox^™ IP Series

• 13.56MHz iClass SE^® Reader
• Genuine HID Technology^™
• Wiegand over Ethernet
• IK 10 Rated Impact Resistance
• IP65 Rated Ingress Protection
• Ethernet Communication
• Power Over Ethernet (PoE)
• Programmable Audio & Visual Indicators
• Firmware Upgradable Over Ethernet
• Up to 2 inch Read Range
• Built-In Switch Monitoring
• Superior Vandal Resistance
• ⅛” Stainless Steel Construction

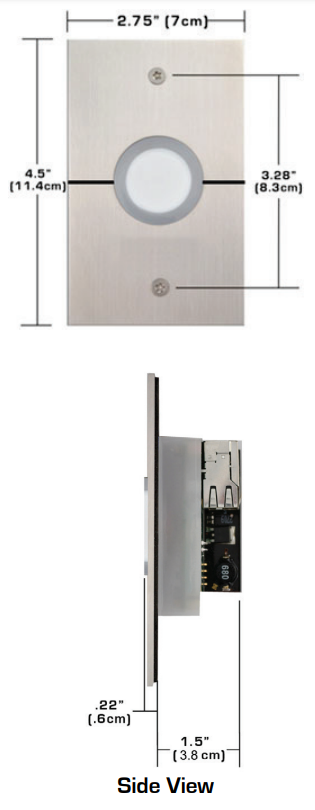

Dimensions

IRX-1IP: H: 4 ½” W: 1 ¾” D: 1 ½”
IRX-2IP: H: 4 ½” W: 2 ¾” D: 1 ½”

Mounting Method

IRX-1IP: Mullion Mount
IRX-2IP: Single Gang switchbox

Audio & Visual Feedback

Software Programmable /Host controlled.
Audio (On, Off, Slow/Medium/Fast Beeps)
Visual (On, Off, Slow or Fast)

Auxiliary Switch Input

Detect activation and full four state monitor
of switch health (Piezoelectric or mechanical switch)
Provides proprietary testing of piezoelectric switch.

Auxiliary Reader Input

Supports an additional reader

Ordering
IRX – 1IP iRox IP Series Narrow Ethernet 13.56MHz Reader
IRX – 2IP iRox IP Series Single Gang Ethernet 13.56MHz Reader

IRX-3IP-WT iRox IP iCLASS SE® Reader, Double Gang, Stainless Faceplate, Watch Tour
