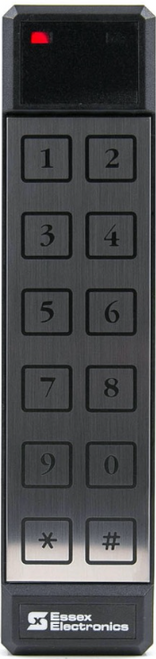

Essex Electronics SKE-26S Heavy Duty Self Contained Access Control Keypad Stainless Steel

The SKE-26 is a multiple user, self-contained Access Control Keypad with features suitable for most residential, small commercial and industrial access control applications. With a 2A relay on board, simply add power (5VDC or 12 to 24VDC) and the SKE-26 is ready to provide dependable access control. Proprietary Piezoelectric Billion Cycle Switch Technology^™ ensures superior performance in any environment (heat, rain, snow, ice -up to ⅜”). The SKE-26 is backed by a limited lifetime warranty.

• Self Contained Access Control
• Professional Grade Piezo Keypad
• Easy to install and operate
• Up to 500 User Codes
• 3 Programmable Outputs
• Lower Cost Self Contained Design
• Weatherproof -40°C to +70°C
• Waterproof 100% Relative Humidity
• Mullion or Surface Mount

Easily programmable through the Keypad, the SKE-26 features up to 502 Codes (1 Master, 500 User and 1 Temporary) and 3 Programmable Outputs (1 SPDT Relay rated at 2A at 24V max and 2 Open Collector ¼ A max to ground). The SKE-26 can be used to control a fail-safe or fail secure electric locking device. It can also be used to control a garage door or electric gate. Two ¼ A grounding outputs are available which can drive a relay (separate relays required) to open a second door, trigger a CCTV or doorbell or control an auxiliary device.
