ESSEX ELECTRONICS INC PRX-2 Proximity Reader, Single Gang Box Mount, 5/12 Volt DC, 2-3/4" Width x 1-1/2" Depth x 4-1/2" Height, Blue/Green, With Essex Globe Design
- Essex Electronics
- UPC Code:
ESSEX ELECTRONICS INC | PRX-2
Proximity Reader, Single Gang Box Mount, 5/12 Volt DC, 2-3/4" Width x 1-1/2" Depth x 4-1/2" Height, Blue/Green, With Essex Globe Design

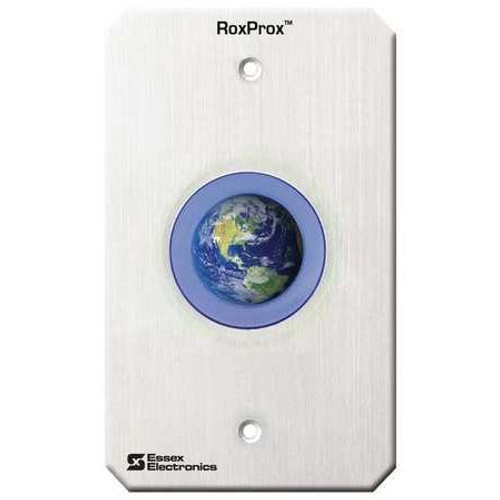

Essex RoxProx™ is a heavy-duty 125 kHz proximity reader with Genuine HID Technology™. Built to last, this all-weather IP66 rated Wiegand reader features stainless steel construction, epoxy encapsulated electronics,
audiovisual feedback, and modern low profile design. Suitable for all indoor and outdoor applications, RoxProx
is the rugged proximity reader solution for vandal prone areas and extremely harsh climates.
The model PRX-2 is designed to be mounted directly to the standard single-gang wall box and integrates both a 125KHz proximity reader and keypad into a single unit making it ideal for applications requiring an access credential and/or personal identification number (PIN).
The proximity reader and keypad of the PRX-2 are both capable of transmitting data in 26-Bit Wiegand format, making it compatible with any of the Wiegand equipped Viking entry controllers. The keypad is based on cutting-edge, non-mechanical, capacitive technology, which, unlike membrane keypads, includes no moving parts prone to early failure. Advanced keypad enhancements include fully potted circuit board (EWP), keys with blue LED back-lighting, raised key outlines and pip on the 5-key.
The PRX-2 delivers non-contact read ranges up to 6 inches, and operates from 5 to 14 VDC. Mounting is simplified with horizontal and vertical mounting slots, which allow the reader to be conveniently adjusted and leveled. Concealing the mounting hardware, the PRX-2 ships with both Black and Ash (Off-White) covers.
The PRX-2 comes equipped with Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed to precipitation or condensation. The PRX-2 features sealed connections, as well as an epoxy potted circuit board. For more information on Enhanced Weather Protection (EWP), see DOD 859.
PRX–2/PRX–2R: Single Gang. Flush mount to
a single gang switch box or optional Backbox
(BAK BOX–SGS) for surface mount installation.
Custom Graphics Available
Laser Marked in Black.
Height 4 ½” Width 2 ¾” Depth 1 ½”
Power Requirements 5 or 12VDC Field Selectable
Output Wiegand output interfaces with most OEM access control panels.
Supports card formats up to 91 bits including 26 Bit Wiegand.
Transmit Frequency 125 kHz
Maximum Read Range Up to 2”
Current Draw Standby: 50mA
Operating Temperature - 40°F to + 160°F (- 40°C to + 70°C)
Operating Humidity 100% Relative Humidity
Operating Environment IP66 Rated
