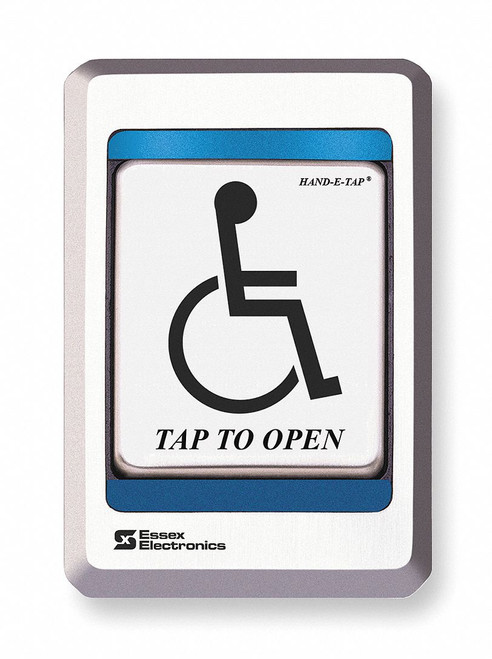

Handicap Door Access Switch, Piezoelectric, 5 1/8 in Height, 3 3/8 in Width

3CWR2

Switch provides assistance to anyone who could benefit from a door that automatically opens. Programmable electronic switch features circuit assembly encapsulation. Field selectable options include adjustable timed output and illumination status feedback for standby or switch activation time. Can be programmed for timed output or toggle (On/Off) operation. Includes programmable audio feedback with a “finder click” for the sight impaired.

• Handicap Door Access Switch
• Type Piezoelectric
• Material Surgical Grade Stainless Steel
• Finish Stainless Steel Bezel
• Depth: 1 in   Height:5 1/8 in  Width:3 3/8 in
• Input Voltage 12 to 24V DC
• Output 1 SPDT, 8A @30V DC
• Amps AC 16A @125V AC
• Operating Temp. -40 F to +160 F
