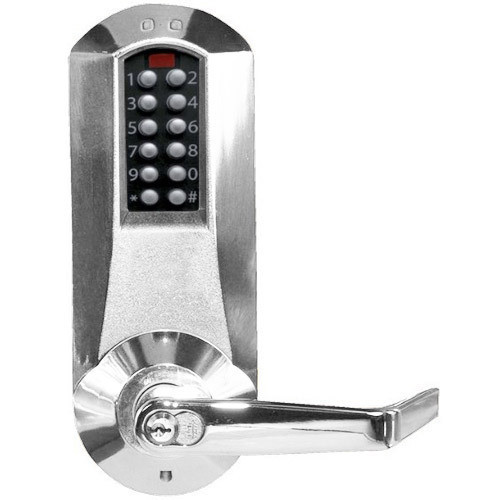

The Eplex E5210SWL-626-41 series of Eplex Electronic Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. The E-Plex 5200 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Eplex 5200 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. The Eplex 5200 grants entry upon successful validation of a 1 to 5 digit code that you pre-program into the lock. Being vandal protected hardware, the Eplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional and government buildings throughout the world.
Features
Satin Chrome Finish
Electronic Pushbutton Lock
Extra heavy-duty Grade 1 lock with solid cast housings construction
Multiple users with upto 3000 Codes
ADA compliant lock
Exit Trim access function
With Winston lever
Exit Trim locking device
Batteries located in interior housing cover that offers quick and easy battery replacement for institutions - lock data is maintained even if batteries fail
Non-handed operation; pre-assembled for left-hand door installations and is easily changed in the field
Audible and visual indicators alongwith low battery visual indicator
Locks are programmed via E-Plex Enterprise Software (not included) which provides easy management of doors and users
Audit Capability: 30,000 Events
Code length - it is adjustable to accept 4 to 8 digits
Anti-tamper lockout - it is adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
Re-lock time - it is adjustable from 2 to 20 seconds
Vandal resistant hardware with solid metal pushbuttons
It easily installs on wood or metal doors with four bolt installation and no wiring
Prepped for Schlage removable core - large format. Core is not included
Very ease of installation as the LectroBolt eliminates wiring to or through the door with no risk of pinched wires
Minimum Stile required: 5" (127 mm)
3-year warranty from date of installation; built-in warranty counter in lock memory
Compatible with the following Panic Bars (less bar): Arrow S1250Dorex 8500R/8500FSargent 8888 Arrow S3883F/S3800Dorex 9500PR/9500FRVon Duprin 22/22F Black & Decker (K-2) QED111/112Dorma 9300/F9300Von Duprin 98/98F Cal Royal 9800Monarch 18R*, F18R*Von Duprin 99/99F Cal Royal 2200Precision 21/FL21Von Duprin XP98/99 Corbin Russwin ED5200/5200ASargent 2828Yale YME2100/2100 Detex 1001 BP1Sargent 3828Yale 7100 Detex 10/F10 SeriesSargent 8810E/8800 *(requires special K-Hub Adapter)
