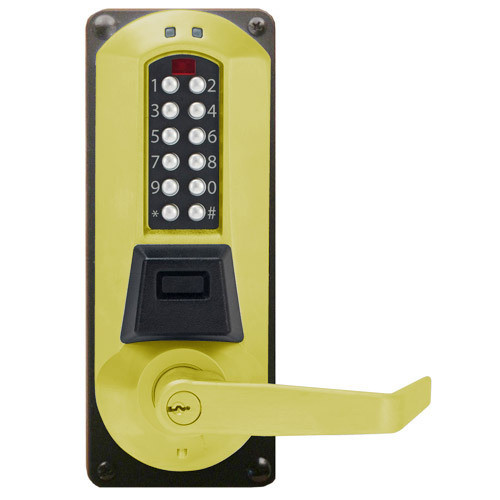

Eplex E5086CWLl-605-41 Electronic Pushbutton Lever Lock with Corbin Core Override Mortise Lock in Bright Brass
$1,180.15
<div class="std"><ul> <li>Bright Brass Finish</li> <li>Electronic Pushbutton Lock</li> <li>PIN Access for Entry and Egress</li> <li>Extra heavy-duty Grade 1 lock with solid cast housings construction</li> <li>Multiple Users with up to 100 Codes which can be upgraded to 300 Codes with optional software</li> <li>ADA compliant lock</li> <li>3,000 audit events</li> <li>American Steel Mortise (ASM) function</li> <li>With Winston lever</li> <li>American Standard Mortise Locking device with 1-1/4" (32 mm) face plate; without deadbolt</li> <li>Locks are programmed via keypad or with optional Microsoft Excel-based software</li> <li>Non-handed operation; pre-assembled for left-hand door installations and is easily changed in the field</li> <li>UL/ULC fire door rating for "A" labeled doors up to 3 hours</li> <li>Audible and visual indicators alongwith low battery visual indicator</li> <li>Batteries are located in mortise housing that offers quick and easy battery replacement for institutions - lock data is maintained even if batteries fail</li> <li>Vandal resistant hardware with solid metal pushbuttons</li> <li>It easily installs on wood or metal doors with four bolt installation and no wiring</li> <li>Code length - it is adjustable to accept 4 to 8 digits</li> <li>Anti-tamper lockout - it is adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds</li> <li>Re-lock time - it is adjustable from 2 to 20 seconds</li> <li>Prepped for Corbin Russwin removable core, core is not included</li> <li>Minimum Stile required: 5" (127 mm)</li> <li>Backset: Mortise- 2-3/4 inch (70 mm)</li> <li>Latch: 3/4" (19 mm)</li> <li>1 year warranty from date of installation; built-in warranty counter in lock memory</li> </ul></div>
The Eplex E5086CWL-605-41 series of Eplex Electronic Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. The E-Plex 5000 Electronic Pushbutton Lock Series provides interior and exterior access by combination. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Eplex 5000 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. Being vandal protected hardware, the Eplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional, and government buildings throughout the world.
Features
Bright Brass Finish
Electronic Pushbutton Lock
PIN Access for Entry and Egress
Extra heavy-duty Grade 1 lock with solid cast housings construction
Multiple Users with up to 100 Codes which can be upgraded to 300 Codes with optional software
ADA compliant lock
3,000 audit events
American Steel Mortise (ASM) function
With Winston lever
American Standard Mortise Locking device with 1-1/4" (32 mm) face plate; without deadbolt
Locks are programmed via keypad or with optional Microsoft Excel-based software
Non-handed operation; pre-assembled for left-hand door installations and is easily changed in the field
UL/ULC fire door rating for "A" labeled doors up to 3 hours
Audible and visual indicators alongwith low battery visual indicator
Batteries are located in mortise housing that offers quick and easy battery replacement for institutions - lock data is maintained even if batteries fail
Vandal resistant hardware with solid metal pushbuttons
It easily installs on wood or metal doors with four bolt installation and no wiring
Code length - it is adjustable to accept 4 to 8 digits
Anti-tamper lockout - it is adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
Re-lock time - it is adjustable from 2 to 20 seconds
Prepped for Corbin Russwin removable core, core is not included
Minimum Stile required: 5" (127 mm)
Backset: Mortise- 2-3/4 inch (70 mm)
Latch: 3/4" (19 mm)
1 year warranty from date of installation; built-in warranty counter in lock memory
Bright Brass Finish
Electronic Pushbutton Lock
PIN Access for Entry and Egress
Extra heavy-duty Grade 1 lock with solid cast housings construction
Multiple Users with up to 100 Codes which can be upgraded to 300 Codes with optional software
ADA compliant lock
3,000 audit events
American Steel Mortise (ASM) function
With Winston lever
American Standard Mortise Locking device with 1-1/4" (32 mm) face plate; without deadbolt
Locks are programmed via keypad or with optional Microsoft Excel-based software
Non-handed operation; pre-assembled for left-hand door installations and is easily changed in the field
UL/ULC fire door rating for "A" labeled doors up to 3 hours
Audible and visual indicators alongwith low battery visual indicator
Batteries are located in mortise housing that offers quick and easy battery replacement for institutions - lock data is maintained even if batteries fail
Vandal resistant hardware with solid metal pushbuttons
It easily installs on wood or metal doors with four bolt installation and no wiring
Code length - it is adjustable to accept 4 to 8 digits
Anti-tamper lockout - it is adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
Re-lock time - it is adjustable from 2 to 20 seconds
Prepped for Corbin Russwin removable core, core is not included
Minimum Stile required: 5" (127 mm)
Backset: Mortise- 2-3/4 inch (70 mm)
Latch: 3/4" (19 mm)
1 year warranty from date of installation; built-in warranty counter in lock memory
