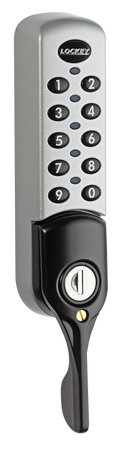

Lockey EC782 Digital Electronic Cabinet Lock with ADA Lever Handle

Features

ADA Lever Handle
Public, Private & Remote Allocation System (RAS) mode
Key override
Up to 80,000 cycles per pair of batteries
Battery condition indicator
Audible keypad (can be turned on/off)
8 digit master code
6 digit sub-master code
4 digit user codes
6 digit technician code
Auto unlock mode (can be turned on/off)
Technician mode

Options

Finishes: Silver (S), Black (B), Custom (C)*
Keypad Direction: Vertical (V), Right (R), Left (L)
Push to Lock SLAM Latch (3)*
Remote Allocation System

Dimensions & Specifications

External Dimensions:
Length: 185.5mm (7 3/8″)
Width: 37mm (1 1/2”)
Depth: 28.7mm (1 1/8”)
Mounting Hole Shape: 2 or 3 point mounting (see technical drawing)
Spindle Length: 20mm standard, 24mm by special order*
Power: 2 x AA Battery (Alkaline)
Operations: Up to 80,000 cycles per pair of AA batteries
Low Battery: LED lights with battery condition indicator
Material: Zinc diecast
Finish: Powder coated
Standard Cam Capability: 1/4” to 1 1/2”
Keys Included: 2
For Internal use

Compatible With

Push to Lock SLAM Latch (3)
​Remote Allocation System (RAS)
EC Series Key Blanks
EC Series Extension Kit

Resources

Download Installation Instructions
Download Programming Instructions
Download Spec Sheet
