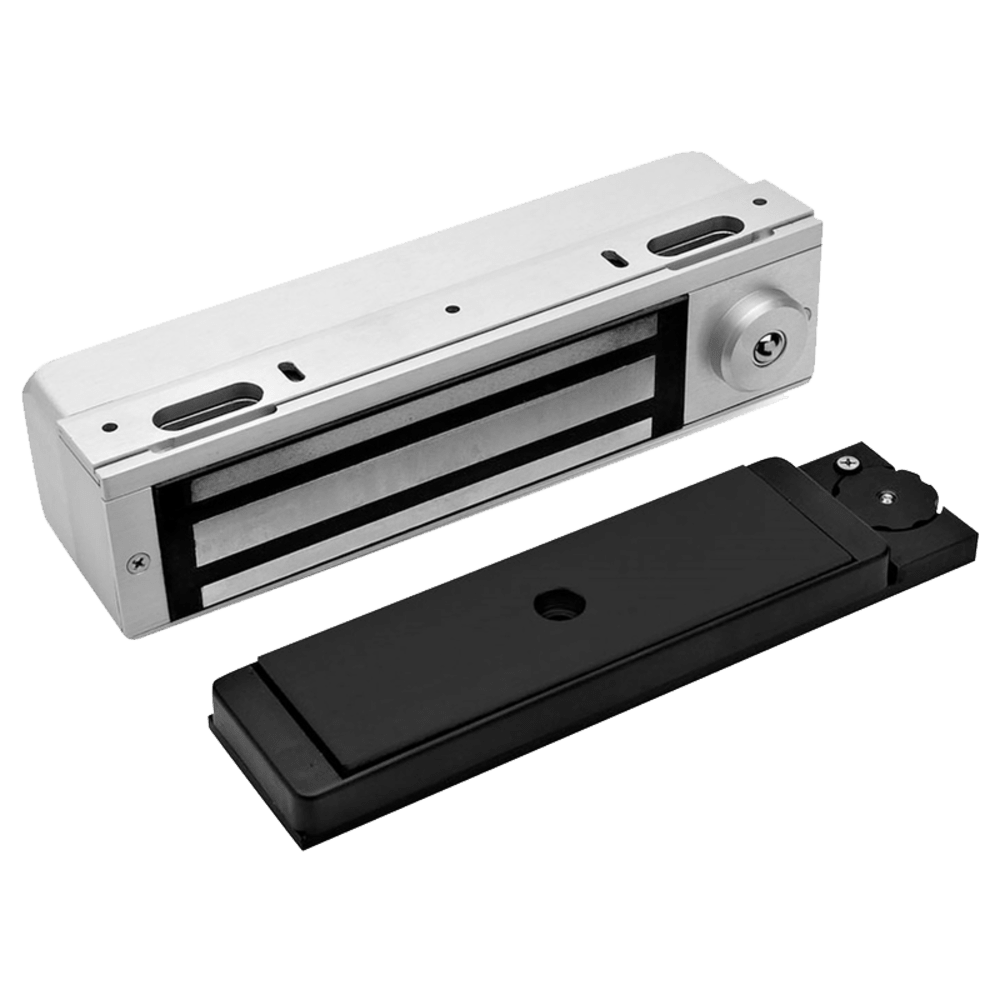

DynaLock 3101C DSM Single Electromagnetic Lock Delayed Egress Outswing, Door Sensor Switch
$1,065.00
(No reviews yet)
Write a Review
- Brand
- DynaLock
- SKU:
- 3101C-DSM-US28
DynaLock
3101C DSM
Single Electromagnetic Lock Delayed Egress Outswing, Door Sensor Switch
| Manufacturer | DynaLock |
|---|---|
| Model | 3101C-DSM-US28 |
| Housing Dimensions | 3” D x 2-3/4” H x 11” L |
| Armature Plate Dimensions | 1/2” D x 2-5/16” H x 7-3/8” L |
| Door Type | Single Door |
| Voltage | Field Selectable 12/24 VDC |
| Holding Force | 1500 lbs. (680 kg) |
| Mounting Type | Surface |
| Certifications | Conforms to NFPA101 Life Safety Code |
| U.L. Listed | Listed Auxiliary Lock 5N98 Listed 1M59 Special Locking Arrangements |
| CA State Fire Marshal | CSFM |
| Warranty | Lifetime Warranty |
| Weight | 13.0000 |
