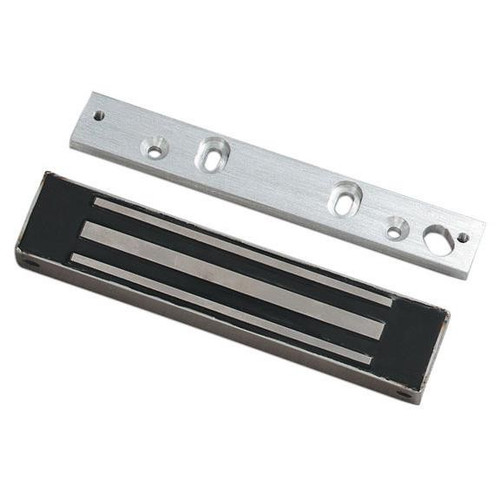

Dortronics MM-300N Electromagnetic Lock Outswing Applications

$258.94

(No reviews yet) Write a Review

$258.94

Additional Information

Downloads	1. Dortronics MM-300N Specification Sheet (pdf) 2. Dortronics MM-300N Mounting Instructions (pdf)
Manufacturer	Dortronics
Model	MM-300N
Application	Outswing Applications
Housing Dimensions	6” long x 1-1/4” high x 7/8” deep
Armature Plate Dimensions	5” long x 1-1/8” wide x 5/16” thick
Door Type	Single Door
Voltage	Optional
Power/Current Requirements	160 mA @12 VDC 85 mA @ 24 VDC
Holding Force	300 lbs. (136 kg)
Wiring Requirements	Flying leads that extend from the housing at one top corner. These wires must be concealed and protected by the installing contractor as required.
Mounting Type	Surface
Warranty	Lifetime Guarantee
Weight	6.0000

MM-300N Dortronics Maglock Mini Series Cabinet and Drawer Lock, 300 lb Holding Force Mini-Mite Lock, 12/24 VDC, Narrow Line, Stainless Steel Housing
