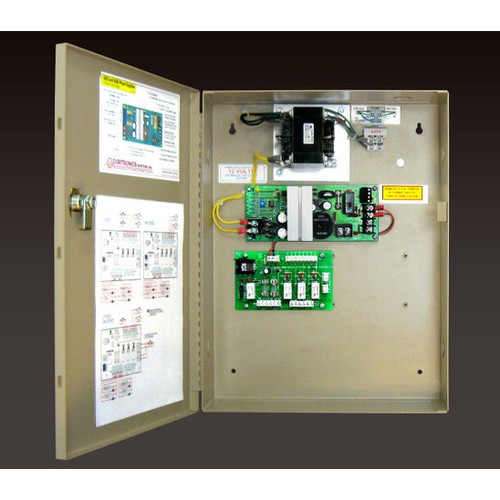

Dortronics 43211-U Economical 2-Door Interlock Mantrap Controller (2-Door / 1-Room / 2-Normally Unlocked Doors)
$974.00
- Brand
- Dortronics
- SKU:
- 43211-U
- Condition:
- New
Manufacturer | Dortronics |
|---|---|
Model | 43211-U |
Dimensions (Enclosure) | 12” x 16” x 4” deep NEMA enclosure will accommodate one or two relay modules with the built-in power supply. Additional modules may require larger enclosures. |
Dimensions (PC Board) | Module - 5” x 3” overal controls two doors |
Power Requirements | AC Input - Fused 110 VAC DC Output - 4 amp field selectable 12 or 24 VDC |
Output Voltage | Field selectable 12 or 24 VDC |
Inputs | Two Dry Contact Inputs for Door Status (Contact closed when is door secure) Two Dry Contact Inputs for Request to Access (Contact normally open) Two Dry Contact Inputs for Remote Override |
Outputs | Two Relay Outputs - SPDT powered outputs for direct connection to locks. 3 Amps Max. Two Relay Outputs – SPDT dry contact rated for 3 Amps@ 28 VDC mirror lock status for traffic lights or signalling a remote console. |
Warranty | 1 Year Warranty |
Weight | 20.0000 |
43211-U — Dortronics Power Supply 4300 Series 2 Door Mantrap Interlocks, 2 Doors - 1 Room, All Doors Normally Unlocked
1 Review Hide Reviews Show Reviews
-
Shipping
The product was great.
