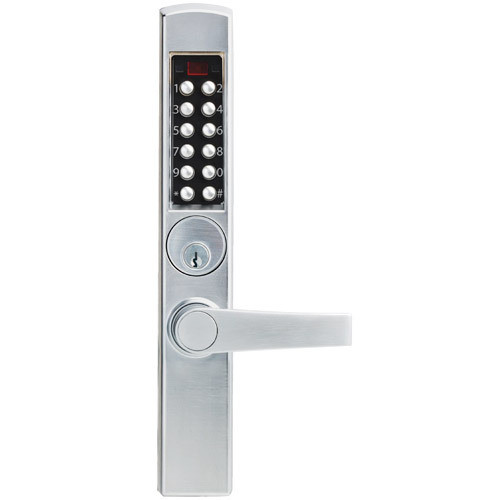

E-Plex E3065MKNT-626-41 Series – Electronic Pushbutton Lock for Narrow Stile Aluminum Glass Doors
The E-Plex E3065MKNT-626-41 series of E-Plex Electronic Pushbutton Locks is designed to eliminate the complexities and costs associated with issuing, controlling, and collecting keys and access cards. This advanced electronic lock system provides secure exterior access via a combination, while allowing free egress, making it the ideal solution for high-traffic commercial, institutional, and government buildings. The E-Plex 3000 Series is renowned for its vandal-resistant hardware and robust performance, and is widely accepted across the globe.
As part of Unican Kaba Ilco’s legacy of over 100 years of security innovation, the E-Plex series combines industry-leading security with durable, user-friendly design.
Key Features:
Satin Chrome Finish (Standard): A sleek, durable finish that enhances the aesthetics and longevity of the lock.
Solid Cast Construction: Features solid cast housings and a solid cast lever or thumbturn, thoroughly wear-tested for extensive use in both indoor and outdoor environments.
Versatile Retrofit Compatibility: Easily retrofits to various Adams Rite Mortise Dead Latch locking devices such as models 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, and 4920AN, as well as the 8400 Mortise Exit device.
Narrow Stile Applications: Perfectly suited for narrow stile aluminum and glass doors, commonly used in commercial and institutional settings.
ADA Compliant: Meets American with Disabilities Act (ADA) standards, ensuring accessibility for all users.
Tamper-Proof Battery Placement: Batteries are housed in a secure, tamper-proof base of the outside housing for enhanced protection.
Non-Handed Operation: The lock is non-handed, making it easy to change the handing in the field without special tools.
Indoor/Outdoor Approval: Designed and approved for both indoor and outdoor applications, with robust environmental hardware for diverse settings.
Programming Flexibility: Program the lock via the keypad or use optional Microsoft Excel-based software for easy management and configuration.
Audit Trail: Stores up to 9,000 audit events in the lock’s memory, providing a complete record of access events.
Access Codes: Supports up to 300 unique access codes per door, offering flexibility and enhanced security for users.
Vandal-Resistant Keypad: Features durable, metal push buttons that are resistant to tampering, ensuring longevity and reliability in high-traffic areas.
Easy Installation: Installs on narrow stile doors with just four mounting screws, eliminating the need for complex wiring and reducing the risk of pinched wires.
Door Specifications: Designed for doors with a thickness of 1-3/4" (44 mm) and a minimum stile width of 2" (51 mm). The backset requirement is 31/32" (25 mm) minimum.
Exceptional Durability: Built to meet BHMA Grade 1 life cycle and reliability testing standards, ensuring exceptional durability and performance.
Warranty: Comes with a 3-year warranty from the date of installation, with a built-in warranty counter in the lock memory for tracking.
The E-Plex E3065MKNT-626-41 series is a versatile, high-performance electronic access control solution, offering durability, ease of installation, and enhanced security for narrow stile aluminum glass doors. Whether for a single door or a large facility, this lock system is designed to meet the demands of modern, high-traffic environments.
