Dormakaba E-Plex 5700 series Model E5766XS Proximity Card and Pin Code access control for MORTISE Doors (without Deadbolt) - SCHLAGE Key-in-Lever Included.
- Brand
- Dormakaba Access
- SKU:
- E5766XS
Template*** WITHOUT DEADBOLT MODEL ***
Electronic lock with dual credential capability—PIN and/or PROX card (HID, 125 kHz, 26 to 84-bit format). Lock is scheduled to require credentials based on security and convenience requirements.
- PIN only
- PROX card only
- PIN + PROX card
No Wires: E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks
Number of Users: 3,000 (per door) with software; 300 in LearnLok mode
Programming: Locks are programmed simply via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage a large number of doors and users
Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
Scheduling:
- Access schedules—up to 16 different access schedules may be programmed into lock
- Holiday/Vacation—up to 32 different holiday/ vacation blocks may be programmed into lock
Operation Modes:
- PIN access
- Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
- Lockout
Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours
User Parameters:
- Code length—adjustable to accept 4 to 8 digits
- Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock time—adjustable from 2 to 20 seconds
Ease of Installation:
Simple, easy-to-install reader unit is predrilled for single gang box or wall mounting. Lockable interface controller unit enclosure is predrilled and has knockouts for simple wiring with low voltage connections directly into off-the-shelf power interface units. Product also includes a contact closure, alarm shunt output to interface with new or existing fire alarms and security systems.
Specifications
- Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
- Keypad: Vandal resistant, solid metal pushbuttons
- Battery: Batteries located in interior housing; provides quick and easy battery replacement for institutions; four AA Alkaline batteries provide up to 120,000 cycles; 400,000 cycles with high capacity "C" battery pack
- Function: American Steel Mortise (ASM)
- Locking Device: STD Mortise 1¼" (32 mm) face plate without deadbolt (non-handed)
- Key Override: K-I-L Kaba Cylinder (Schlage "C" Keyway) included
- Lever: Winston
- Finishes Available: 626 Satin Chrome
- Warranty: 3-year warranty from date of installation; built-in warranty counter in lock memory
0 Reviews Hide Reviews Show Reviews

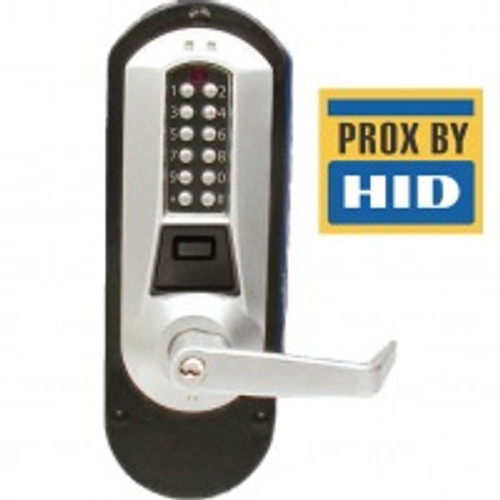

Dormakaba Eplex E5710XS 5700 series Model Proximity Card and Pin Code access control for Door with PANIC BARS and with SCHLAGE Key-in-Lever Included.
Dormakaba Access
Dormakaba E-Plex 5700 series Proximity access control
Dormakaba Access

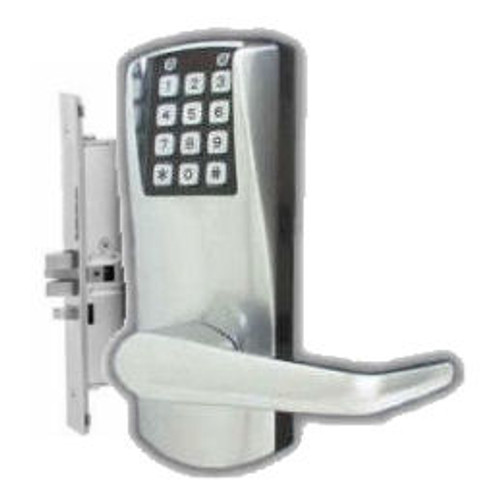

Dormakaba E-Plex 2000 Series Model E2066XS Electronic Grade 1 Mortise Lock without Deadbolt and with Auto-Expiring Service User Codes (SCHLAGE C key-in-lever INCLUDED)
