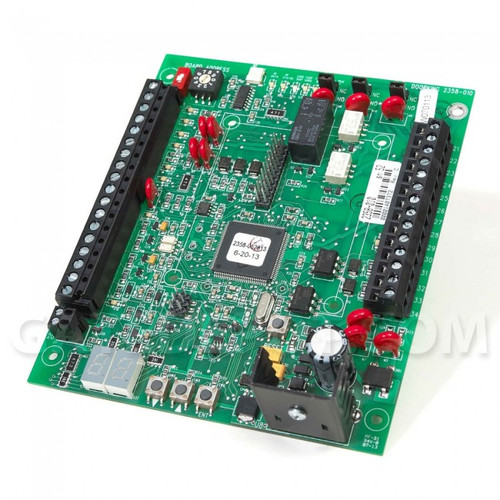

Tracker Expansion Board

Model 2358 "Tracker" expansion boards are used with models 1833, 1835, 1837 and 1838 access controllers to expand these systems to control up to 24 entry points. DKS access controllers and "tracker" expansion boards make a powerful access control combination that can be used in a variety of applications and they add many door control features to the overall system. Tracker boards are also used with DKS gate operators to provide gate operator data to the access control system.

Features:

• Tracker expansion boards allow various DKS access controllers to control up to 24 entry points
• Provides power and inputs for almost any 26, 30 or 31‐bit wiegand device
• Forced entry alarm output relay
• Door ajar alarm output relay
• Request to exit input
• Hold open feature unlocks individual doors when a hold open command is received from the controller
• Reports gate operator data from DKS gate operators
• EEPROM Memory
• 2‐year warranty

• 2351-081, 2351-082 TRACKER EXPANSION BOARDS ENCLOSURE

• Lockable weather resistant enclosure for up to four tracker boards
• Tracker boards ARE NOT included
• Includes terminal strips and four convenience outlets
• 2351-082 includes factory pre-wire to simplify field installation
