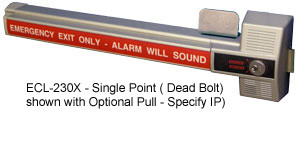

Detex ECL-230X Dead Bolt Exit Control Hardware

ECL-230X EXIT CONTROL LOCK

The ECL-230X is a code compliant, battery alarmed, rugged deadbolt, panic device photo-luminescent sign providing maximum security and a 100-decibel alarm for secondary exits

Product Features

• Single point, 1" throw deadbolt with just over 3/4" engagement with the frame

• Saw resistant deadbolt

• Corrosion-resistant alloy lock body

• 100-decibel alarm, powered by a 9-volt battery (included)

• Surface/flush reversible strike

• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar *** CYLINDER NOT INCLUDED ***

• Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed

• Locking and unlocking (deadbolt) always arms and disarms the alarm

• Non-handed

• Low profile meets International Building Code requirement allowing for 4" maximum projection off the face of the door

• Resetting the alarm can only be accomplished with a control key

Technical Information

• Door Types - Wood, Hollow Metal

• Door Thickness - Fits standard 1-3/4" - 2-1/4"

• Standard Device fits 36" - 48" door

• Machine and Sheet Metal Screws (Std.)

Detex Limited Warranty

10 Year Limited Manufacturers Warranty
