Corbin Russwin ML20903-LL-24AD-M92 Fail Safe Electrically Controlled Mortise Lever Lockcase w/ Request to Exit Monitor (24VAC/DC)
$467.25
(No reviews yet)
Write a Review
- Brand
- Corbin Russwin
- SKU:
- ML20903-LL-24AD-M92
- Condition:
- New
| Manufacturer | Corbin Russwin ASSA ABLOY |
|---|---|
| Model | ML20903-LL-24AD-M92 |
| Lock Functions | ML20903: Latchbolt by grip either side, unless outside grip is locked by energizing solenoid. Latchbolt by key outside when solenoid is energized. Inside grip always free. Auxiliary latch deadlocks latchbolt |
| Door Thickness | 1-3/4" (44mm) standard. |
| Backset | 2-3/4" (70mm). |
| Case | Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). |
| Handing | Non-Handed |
| Keying/Keyways | Less Cylinder |
| Latchbolt | 2-piece mechanical anti-friction insert, 5/8" (16mm) x l" (25mm) x 3/4" (19mm) throw. |
| Faceplates/Armor Fronts | Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. |
| Strikes | Wrought brass, bronze or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8'' (29mm) lip to center. |
| Mode of Operation | Fail Safe |
| Electrical Specifications | 24VAC/VDC @ 390mA Continuous duty solenoid. |
| Monitoring Options | Request to Exit monitoring is a SPDT switch which monitors the activation of the trim. (Both levers activate switch) |
| Certifications | Meets FF-H-106C. |
| U.L. Listed | All locks listed for A label and lesser class doors, 4' x 10' single or 8' x 10' pair. Letter F and UL symbol on armored front indicate listing. Meets requirements of UL1034. |
| Warranty | 1 Year Warranty |
| Weight | 3.5000 |
Corbin Russwin Corbin Russwin ML20903-LL-24AD-M92 Fail Safe Electrically Controlled Mortise Lever Lockcase w/ Request to Exit Monitor (24VAC/DC)
0 Reviews Hide Reviews Show Reviews
Corbin Russwin ML20903-LL-24AD ECL Fail Safe Electrically Controlled Mortise Lever Lockcase (24VAC/DC)
Corbin Russwin
$467.25
Additional Information Manufacturer Corbin Russwin ASSA ABLOY Model ML20903-LL-24AD <
Corbin Russwin ML20905-LL-24AD-M92 Fail Secure Electrically Controlled Mortise Lever Lockcase w/ Request to Exit Monitor (24VAC/DC)
Corbin Russwin
$561.22
Additional Information Manufacturer Corbin Russwin ASSA ABLOY Model ML20905-LL-24AD-M92
Corbin Russwin ML20903-KK-24AD ECL Fail Safe Electrically Controlled Mortise Knob Lockcase (24VAC/DC)
Corbin Russwin
$467.25
Additional Information Manufacturer Corbin Russwin ASSA ABLOY Model ML20903-KK-24AD <
Corbin Russwin ML20901-LL-24AD ECL Fail Safe Electrically Controlled Mortise Lever Lockcase (24VAC/DC)
Corbin Russwin
$467.25
Additional Information Manufacturer Corbin Russwin ASSA ABLOY Model ML20901-LL-24AD <

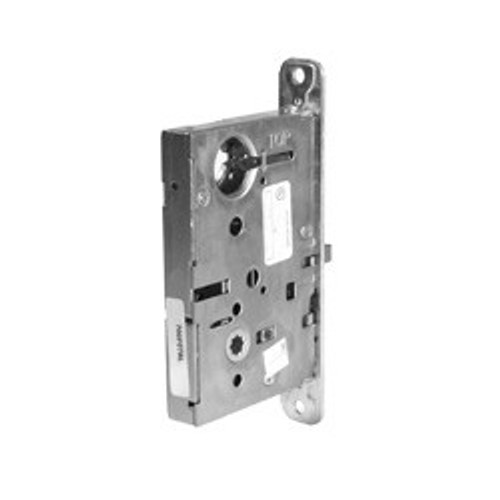

Corbin Russwin Corbin Russwin 702F95 Fail Safe Electrified Mortise w/ Request to Exit Monitor Lever Lockcase Only (24VAC/DC)
