Command Access Technologies

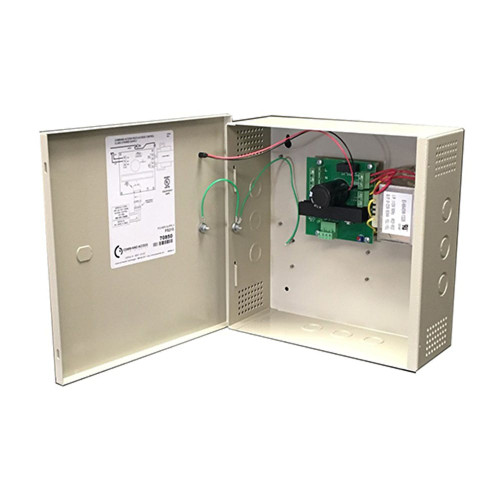

PS210

Power Supply with Boost Circuitry for up to 2 Electric Latch Pullback Devices, 1.5A 24V Continuous 2.5A Boost, Linear Design, 1 Solid-State I/O, UL 294 6E / CSA Design

SPECIFICATIONS

Input Voltage:
• 120 VAC, 60 Hz,
• Input Fuse: 2 Amp Fuse @ 250VAC
Output Voltage:
• 1.5A @ 24VDC
• 1 Solid State I/O’s - 1.5A auto resetting
fused outputs
• Over-voltage protection
• Output Voltage trim pot
Fire Alarm:
• Fire alarm link
Electrical:
• Temperature range: 0 to 49° C; 32 to
120° F
• Maximum humidity: 85%

FEATURES

LED’s:
• Red = A/C Power indicator
• Green = D/C Output indicator
Features & Benefits:
• Linear design insures ample inrush/
hold current for latch retraction
• Door mounted LED Power Indicator
• Easy to remove euro connectors
Listings:
• UL294 6th Edition
Mechanical Details:
• Enclosure dimensions: PS210 (11” W
x 11” H x 4” D).
• 1/2” & 3/4” knockouts on all sides
• Hinge-less removable cover; Cam
lock not provided
• Product Weight: PS210 - 10lbs
• Shipment Weight: PS210 - 11lbs
