Command Access Technologies

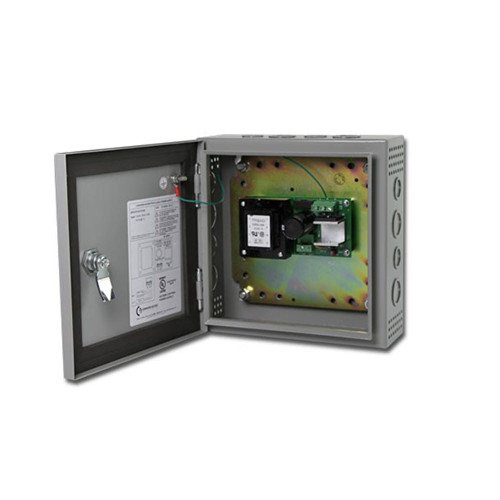

PS1

1 amp at 24VDC, Built to run up to 1 locks, exit trim, & LP Motor/Soleniod kits

PS1 - 110-120VAC input power supplies that deliver (1) amps @ 24VDC to (1) PTC
fused outputs. (1) solid-state input triggers, protects system relays from shorts, grounds
and surges. Its linear design makes it a perfect match for solenoid & motor driven exit
devices, electric locks, electric strikes, and mag locks.

SPECIFICATIONS

Input Voltage: 120 VAC, 60 Hz,
• Input Fuse: 2 Amp Fuse @ 250VAC
Output Voltage:  1A @ 24VDC
• 1 Solid State I/O’s - 1A auto resetting fused
outputs
• Over-voltage protection
• Output Voltage trim pot
Fire Alarm: Fire alarm contacts can be wired in series with input trigger to achieve fire alarm
disconnect.
Listings:
• UL294
• CSA

FEATURES

LED’s:
• Red = A/C Power indicator
• Green = D/C Output indicator
• Orange = Battery Output Indicator
Features & Benefits:
• Linear design insures ample inrush/hold
current for latch retraction
• Door mounted LED Power Indicator
• Easy to remove euro connectors
• Intelligent short circuit detection
Mechanical Details:
• Enclosure dimensions: PS1 (11” W x 11” H x4” D)
• 1/2” & 3/4” knockouts on all sides
• Hinge-less removable cover; Cam lock not provided
• Product Weight: PS1 - 14 lbs
• Shipment Weight: PS1 - 15 lbs
Electrical:
• Temperature range: 0 to 49° C; 32 to 120° F
• Maximum humidity: 85%
