COMMAND ACCESS TECHNOLOGIES | MLRK1-SGT | 72500
Door Latch Pullback Kit, Motor Driven, 22 to 28 Volt DC, For Sargent Exit Device

The MLRK1-SGT (SLP-UL-M-KIT) is a practical and cost-effective way to convert a mechanical Sargent 80 series device to an electrified latch pullback device. The retrofit kit will maintain all UL listings on the device and for peace of mind is backed by CAT’s 3-year no hassle warranty.

The MLRK1-SGT is a practical and cost-effective way to convert a mechanical Sargent 80 series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the SLP features an updated MM4S module with 2 different energy consumption settings from energy-conscious to high torque to get the tough jobs done!

SPECIFICATIONS

Voltage:

Voltage range – 24 to 28 VDC
• System protection – unit shutdown when
voltage exceeds 28VDC
• Standard - Average Current Peak: 900A,
Average Current Hold: 215mA
• High Torque - Average Current Peak: 2A,
Average Current Hold: 250mA
• PTS adjustment – approx. 1/4”

Wire Run:

300’ with 18ga wire

Product Details:

Weight: 2 Lbs

Device Cutdown Details:

36” - All the way to push pad
48” - All the way to push pad

Accessories:

CRSREXKIT-ED - Field Installable REX kit

FEATURES:

MM4S Smart Module: Onboard diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5-second electronic adjustment for easy post-installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if the push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire -Long wire runs provide the installer with the convenience of placing the Command locking hardware power supply in a
centralized location; i.e. the same closet as the access control panel
• 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead

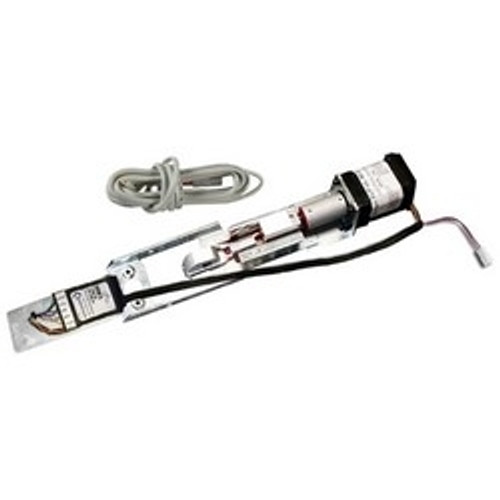

*The image may not represent the actual product or finish
