COMMAND ACCESS MLRK1-HAG Command Access Technologies Electrical Accessories Motorized Latch Retraction Kit, for Hager 4500 4600 Series

MLRK1-HAG — Command Access Technologies Electrical Accessories

Motorized Latch Retraction Kit, for Hager 4500 Series

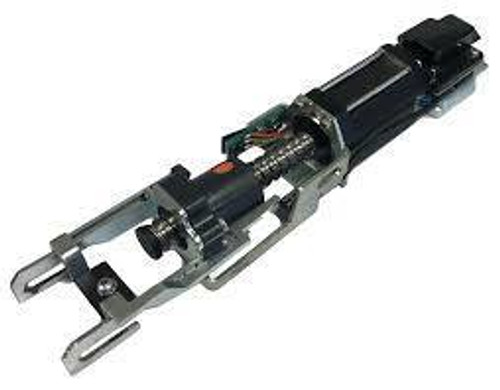

The new MLRK1-HAG/LAW/LSDA1 is a field installable motorized latch pullback kit for Hager 4500, LSDA 9000
RIM & SVR and Lawrence 8000 series exit devices. It’s designed for an extremely easy installation. The only hole
you’ll need to drill, is the raceway! It utilizes our Patent Pending Push to Start (PTS) Technology making post
installation adjustments incredibly easy

SPECIFICATIONS:

Voltage:

Voltage range – 22 to 28 VDC
• System protection – unit shutdown when
voltage exceeds 28VDC
• Average In-rush Current – 1A
• Average Hold Current -180mA
• PTS adjustment – approx. 1/4”

Cutdown Details:

36” Model - Max Cut 1-1/4”
• 48” Model - N/A

Wire run:

500’ with 18ga wire
700’ with 16ga wire

Product Details:

Box: 10.5” x 3.75”: x 2.5”
• Weight: 2 Lbs
• 15 Master Pack Qty: 30 Lbs
• Master Pack Box: 12.75 x 11.75”: x 11”

Recommended UL Locking Hardware Power Supplies:

PS204/PS204B • PS210 • PS220/220B • PS440B • PS480B • PS1 • PS2 • PS5-8

Features:
• MM4 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto retraction if dogged push pad is pulled from position
• Low current draw
• Field switchable to a “High Torque” mode
• Up to 500’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the locking device power supply in a centralized location; i.e. the same closet as the access panel
• 6’ cable with Quick Connect for MM4 module toeasily connect to power supply lead
• 3-year “no hassle” warranty

Accessories:

Request to Exit (REX) - Available as a field installable
kit or factory installed

*The image may not represent the actual product or finish
