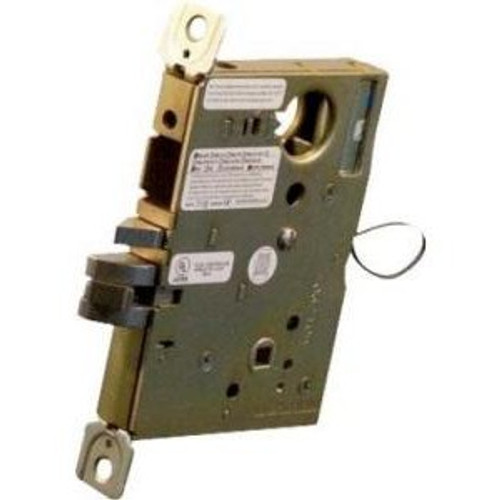

Command Access Command Access MDL80EU-24V-REX Electrified Schlage Mortise Lock Body w/ Request to Exit (Fail Secure)
$725.81
- Brand
- Command Access
- SKU:
- MDL80EU-24V-REX
- Condition:
- New
Manufacturer | Command Access |
---|---|
Model | MDL80EU-24V-REX |
Lock Functions | ML80 (storeroom) – Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress. |
Electrical Specifications | Operating Voltage – 24VAC/DC (+or- 10%) Amperage – 24V = 350mA Solenoid coil resistance – 24V = 69 Ω Power consumption – 8 watts |
Handing | Non-Handed |
Operating Voltage | 24VAC or 24VDC |
Mode of Operation | Fail Secure |
Monitoring Options | REX - Request to Exit |
ANSI/BHMA | A156.13 Series 1000, Grade 1 |
U.L. Listed | UL Listed |
Warranty | 1 Year Warranty |
Weight | 3.0000 |
Command Access Command Access MDL80EU-24V-REX Electrified Schlage Mortise Lock Body w/ Request to Exit (Fail Secure)
