Camden CM-RFK45/A4 — Activation Plates Kinetic Switch Kit, 900 MHz. No-Battery Wireless ACTIVE WHEELCHAIR Symbol and "PUSH TO OPEN" Text, Satin Stainless Steel

CM-RFK45/A4 — Camden Activation Plates

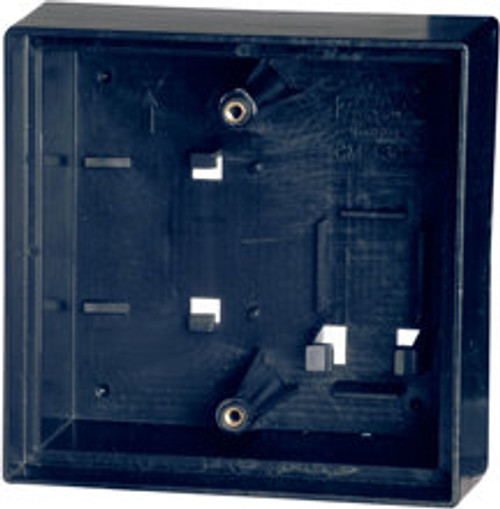

Kinetic Switch Kit, 900 MHz. No-Battery Wireless Door Control System, Two Square Switches, Two SurfaceMount Boxes, One Single Relay Receiver, ACTIVE WHEELCHAIR Symbol and "PUSH TO OPEN" Text, Satin Stainless Steel

The New Wireless Superpower Wireless Signal Powered by Pushing the Switch!
Kinetic by Camden™ is an advanced 900 MHz. ‘power harvesting’ wireless system that uses the energy created by the operation of the switch to power the wireless transmitter. Kinetic by Camden™ avoids the need to provide power or batteries, saving installation and maintenance costs.
Kinetic by Camden™ is the only ‘power harvesting’ wireless system to feature an ultra-compact receiver (easily installed in
automatic door operator cabinets), with field selectable momentary, delayed or latching relay operation, and range
adjustability.

Features:

Huge Savings in Installation and Maintenance Costs.
• Battery-less Switch Operation.
• No-Battery Maintenance.
• Environmentally Friendly - Eliminates the Disposal of Batteries.
• Smooth Switch Operation, ADA Compliant Activation, Using 3.4 lbs Force Maximum.
• Advanced CM-RX-90V2 Wireless Receiver is Compatible with both Lazerpoint RF™ and Kinetic by Camden™ Wireless Systems, Switch Selectable.
• No-Battery Wireless Transmitter may be ordered as part of Camden CM-35, CM-40, CM-45, CM-46 and CM-60 Series Push Plate Switches.
• Compact Design Fits Standard Depth Mounting Boxes.

Applications:

Kinetic by Camden™ No-battery Wireless Systems are compatible with all brands of automatic door operators
and are designed to provide reliable door activation in any commercial,industrial or institutional application.
Kinetic by Camden™ No-battery Wireless Systems are designed for indoor or outdoor applications. For switches directly exposed to rain or snow, a water tight switch option is recommended.

SPECIFICATIONS:
Push Plate Switch and No-Battery Transmitter WIRELESS FREQUENCY 900 MHz. Fixed Frequency
RANGE:
Open Air Up to 300 ft.
Within Operator Header Up to 70 ft.
TEMPERATURE RATING -40°F to 185°F (-40°C to +85°C)
WATER TIGHT OPTION Yes
DIMENSION 1-1/2" (38mm) Box Depth Required
CM-RX-90V2 Receiver
VOLTAGE 12/24V, AC/DC
RESPONSE TIME 3 - 200ms
LEDS Relay Status, Learn/Erase Mode, Signal Strength
Adjust Mode, and Time Setting
OUTPUTS (1) SPDT Relay, 2 Modes Delay and No Delay
CONTACT RATING 3 Amps @ 30V DC
OPERATING TIME 1 - 30 seconds
DELAY TIME 1 - 15 seconds
TEMPERATURE RATING -40°F to -185°F (-40°C to +85°C)
DIMENSION 3-3/8"H x 1-1/2"W x 13/16"D (85mm x 38mm x 21mm)
