Camden 1100 Flush Mount Key Switch, Aluminum Single Gang Faceplate, SPST Momentary, N/O, Brushed Aluminum

Camden 1100 Flush Mount Key Switch, Aluminum Single Gang Faceplate, SPST Momentary, N/O, Brushed Aluminum
Also known as: CM1100, CM-1100

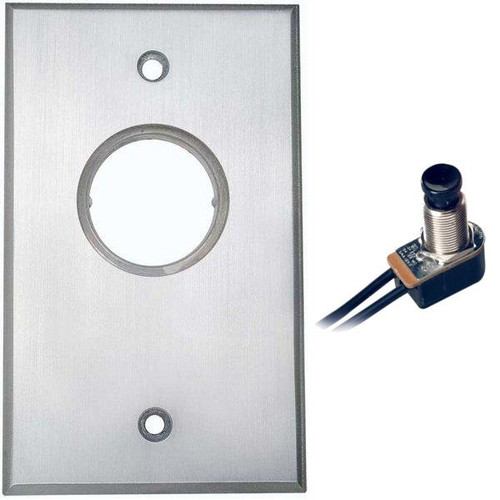

The Camden 1100 Flush Mount Key Switch is a durable and reliable key switch designed for access control systems. Featuring a cast aluminum single gang faceplate with a brushed aluminum finish, this key switch is ideal for both indoor and outdoor flush mount applications. The unit includes a SPST momentary switch with a normally open (N/O) contact, offering smooth and efficient operation.

This key switch is constructed with a 1/4" thick aluminum faceplate for enhanced vandal resistance and a one-piece design combining the faceplate and switch bracket for added durability. The Camden 1100 can accommodate one or two contact switches and is compatible with standard mortise cylinders ranging from 1" to 1-1/4".

Key Features:

• Single gang width for standard mounting.
• SPST momentary switch with normally open contact.
• Brushed aluminum finish for a sleek appearance.
• Heavy-duty 1/4" thick aluminum plate provides superior durability.
• Vandal-resistant design with a one-piece die-cast construction.
• Tamper-proof screws and a specialized driver provided.
• No set screw required for easier installation.
• Locators prevent cylinder from spinning, ensuring stable operation.
• Optional 1-60 second pneumatic time delay for controlled activation.
• Mortise Cylinder not included

Technical Specifications:

• Voltage: 12/24V AC/DC
• Contact Rating: 6 Amps
• Switch Life: 100,000 cycles
• Temperature Range: 32°F - 85°F (0°C to +85°C)
• Finish: Brushed Aluminum
• Dimensions: 4-1/2" x 2-3/4" x 1-1/2" (114mm x 70mm x 42mm)

UPC: 670454120618

The Camden 1100 is an ideal solution for secure and convenient access control, providing reliable performance in a robust, tamper-resistant design.
