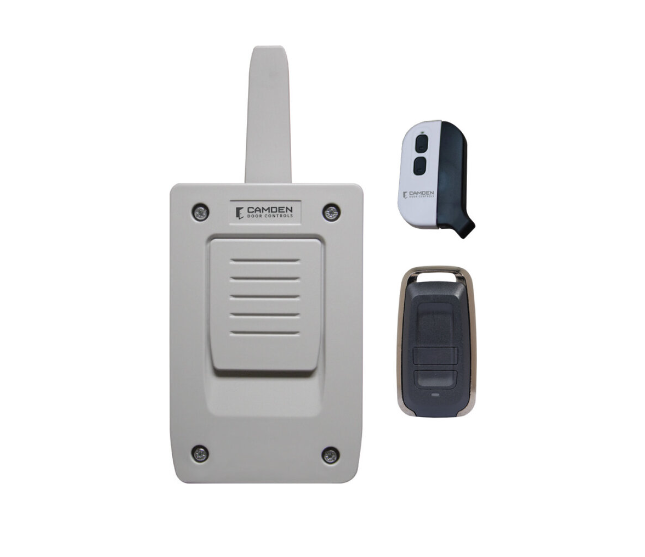

Camden's Wiegand Receivers are designed to integrate seamlessly with existing access control systems, supporting both long and short-range access applications. Users can operate barrier gates or overhead doors from up to 300 feet (100 meters) away by pressing one of two buttons. Additionally, the same transmitter can be used in conjunction with a card reader, providing a conventional access credential. Both the button presses and the card reader will transmit identical 26-bit Wiegand ID numbers, allowing for smooth management of multiple users within the access control database.

Features:

• CV-WRX4:
  • Common 26-bit Wiegand output for all channels
  • Field-selectable facility codes (1 to 255)
  • High-security rolling code with 19 trillion possible combinations
  • Weather and vandal-resistant enclosure
  • 4-channel receiver for in/out control
  • CV-WTX2H-H26SE; CV-WTX4H-H26SE models include a battery-saving feature that stops transmission after 10 seconds of continuous press
  • Solid metal exterior frame for durability
  • High-encryption dual technology (13.56 MHz)
  • LED indicators for low battery and signal transmission
  • 2-year battery life
  • Laser-etched ID numbers for easy identification
• CV-WTX2:
  • Ultra-compact design
  • Wireless range: Up to 300 feet (100 meters)

Specifications:

• Input Voltage:
  • CV-WRX4: 12 VDC
  • Transmitters: 3 VDC (CR 2032 type battery)
• Operating Temperature:
  • Transmitters: -4°F to 131°F (-20°C to 55°C)
  • CV-WRX4: -4°F to 185°F (-20°C to 85°C)
• Current:
  • CV-WRX4: 14mA typical, 36mA peak
  • Transmitters: 12mA
• Frequency: 868.35 MHz
• IP Rating:
  • CV-WRX4: IP54 (IP65 with cable plug installed)
• Dimensions:
  • CV-WRX4: 3-1/4"W x 7-3/8"H x 1-5/8"D (82mm x 187mm x 42mm)
  • CV-WTX2: 1-3/16"W x 2-1/8"H x 3/8"D (30mm x 57mm x 10mm)
  • CV-WTX2H: 1-1/2"W x 2-1/2"H x 1/2"D (36mm x 68mm x 14mm)
  • CV-WTX4H: 1-1/2"W x 2-1/2"H x 1/2"D (36mm x 68mm x 14mm)

Models:

Receiver:

• CV-WRX4: Four Channel Wiegand Receiver

Key Fobs:

• CV-WTX2-H26: Two Channel Wiegand Key Fob + HID Prox.
• CV-WTX2-H26-B: Two Channel Wiegand Key Fob + HID Prox. (Pack of 10)
• CV-WTX2H: Two Channel Wiegand Key Fob
• CV-WTX2H-H26: Two Channel Wiegand Key Fob + HID Prox.
• CV-WTX2H-H26SE: Two Channel Wiegand Key Fob + HID iCLASS SE
• CV-WTX2H-H26SE-B: Two Channel Wiegand Key Fob + HID iCLASS SE (Pack of 10)
• CV-WTX4H: Four Channel Wiegand Key Fob
• CV-WTX4H-H26: Four Channel Wiegand Key Fob + HID Prox.
• CV-WTX4H-H26SE: Four Channel Wiegand Key Fob + HID iCLASS SE
