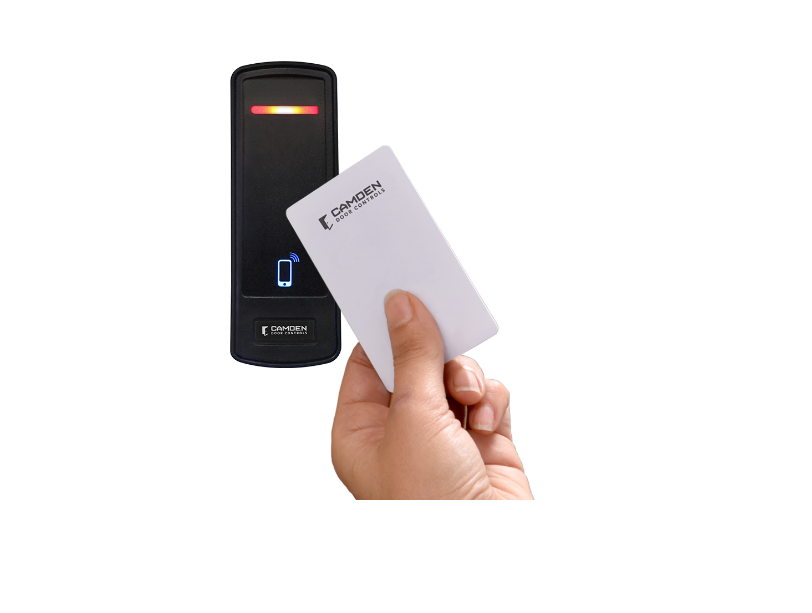

CV-7600 Series High Security Proximity Readers

The CV-7600 Series card readers provide a more secure alternative to standard proximity readers, which are vulnerable to cloning. These readers support MIFARE DESFire EV1 and EV2 encryption credentials, offering enhanced security and virtually eliminating the risk of cloning.

Mobile-Ready Technology:
The CV-7600 readers combine Bluetooth Low Energy (BLE) and contactless smart card technologies. They are compatible with any access control system that supports either Wiegand or bi-directional OSDP (special order). A downloadable app instantly transforms any Android™ or Apple iOS™ smartphone into a mobile access credential—without the need for a subscription fee.

Field Configurable Range:
The CV-7600 readers feature a field-adjustable read range from 1 foot (30 cm) to 30 feet (9 meters), allowing flexibility based on the specific access requirements.

Warranty:
Each unit is backed by Camden’s 3-year warranty, ensuring long-term reliability.

Note: Revision 8 or newer supports touchless activation with Conekt Mobile Access Credentials.

Key Features:

• Bluetooth Read Range: 1 to 30 feet (adjustable)
• Universal Compatibility: Works with all access control systems
• Mobile Access: Smartphone app for both Android™ and Apple iOS™
• MIFARE DESFire EV1 & EV2 Compatibility: Secure smart card/tag technology to prevent cloning
• Multiple Interface Options: 26-bit Wiegand, ABA Track II magnetic stripe (clock & data), and OSDP (special order)
• Weather Resistant: IP67 rated for water and dust resistance
• Mounting Options: Narrow width (jamb) design with included single gang mounting plate
• 3-Year Warranty: Reliable, long-term performance

Specifications:

• Voltage: 8 - 14 VDC
• Current Draw: 40 mA typical at 12VDC, 195 mA peak
• Frequency: 13.56 MHz (Contactless Smartcard), 2.4 GHz (Bluetooth Low Energy - BLE)
• Cabling: Minimum 24 AWG, multi-conductor stranded cable with foil shield
• Interface: Wiegand (26-bit formats), ABA Track II Magnetic Stripe (Clock & Data), OSDP
• Operating Temperature: -40°F to 149°F (-40°C to 65°C)
• LED Indicators: Blue, Red, Green, Amber, and Off
• Read Range:
  • Cards/Tags: Up to 1.5" (38mm)
  • Mobile (CV-7600): 1 ft (30 cm) to 30 ft (9 m), field adjustable
• Audio Feedback: Beeper included
• Protection Rating: IP67 (Waterproof and dust-tight)
• Dimensions:
  • Mullion: 1-3/4" W x 4-3/4" H x 1-3/16" D (44mm x 119mm x 30mm)
  • Single Gang: 3" W x 5-1/8" H x 1-3/16" D (76mm x 130mm x 30mm)

Models & Credentials:

Readers:

• CV-7600
  High Security Proximity Reader (Mobile Ready) – MIFARE Reader with BLE for Smartphone Credentials

Credentials:

• CV-MBT
  Smartphone BLE Mobile Credentials – Pack of 10
• CV-MCS
  MIFARE DESFire EV2 Encrypted Clamshell Cards – Pack of 10
• CV-MIS
  MIFARE DESFire EV2 Encrypted ISO-style Cards – Pack of 10
• CV-MKT
  MIFARE DESFire EV2 Encrypted Key Fob (2K memory) – Pack of 10
