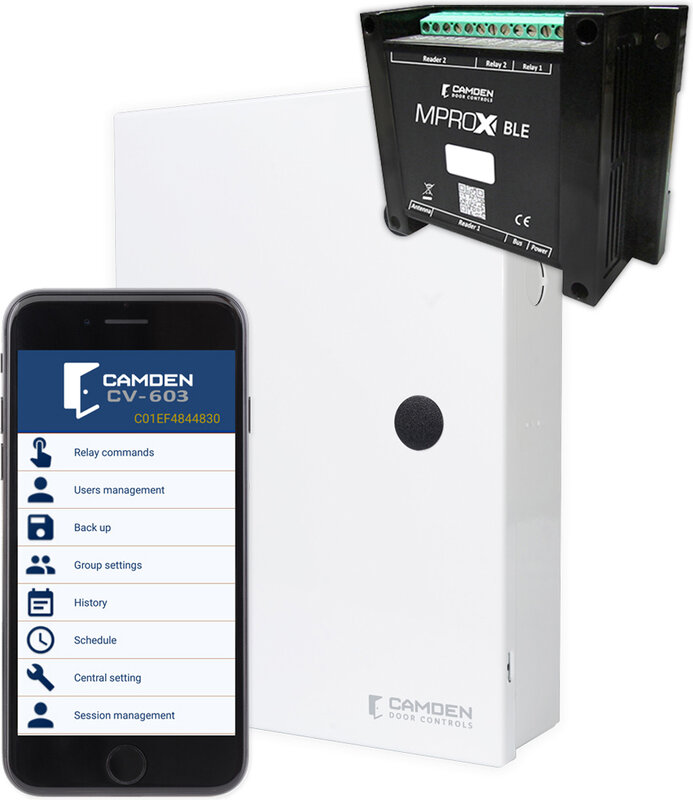

CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive programming app is Apple® and Android® Protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.

The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.

FEATURES

• No PC required. Programmed via smartphone Bluetooth(R) App
• 2,000 User Capacity
• Built-in Bluetooth® mobile credentials option
• Wiegand Reader protocol – 26, 30, 34 and 37 bits
• Common Alarm Relay – Trigger remote devices
• Anti-pass back – Higher level of security
• Sensor Input – For door position switch or vehicle loop detector
• Form C relays – Fail-safe or Fail-secure electric locks
• Built-in 433 Mhz. key fob receiver – used with CX-TXM-2 two button transmitters
• Encrypted rolling code and protected AES128 transmission of transmitters
• Operator Security Levels – 5, configurable
• 3 year warranty


SPECIFICATIONS

• Voltage: 12 VDC
• Current Draw: Less than 100 mA
• Contact Rating: 1A at 12V AC/DC
• Users Supported: Up to 2000
• Reader Inputs: 2
• Reader Outputs: 2
• Reader Input Types: Supports Wiegand 26, 30, 34, and 37 Bit
• Receiver Frequency: 433 MHz
• DIN Rail Mountable: Yes
• Temperature Range: -4°F to 131°F (-20°C to +55°C)
• Relay Output Options: Timed (1 to 180 seconds), Momentary, Bi-Stable (Latch)
• CV-603 Dimensions: 4-1/2" H x 3-1/2" W x 1-3/4" D (115mm x 90mm x 44mm)
• CX-TXM-2 Dimensions: 2-5/8" H x 1-1/4" W x 1/2" D (66mm x 30mm x 11mm)

Models & Controllers

• CV-603
  2-Door MProx-BLE Controller with 433 MHz Receiver – Small Access Control System
• CV-603PS
  Cabinet with MProx-BLE Controller, 12 VDC, 1.5 Amp Power Supply (without battery), and 16 VAC, 40 VA Transformer – Small Access Control System

Extension Antenna

• CV-603EA
  433 MHz Extension Antenna for MProx-BLE Controller – 8ft (2m) Coaxial Cable, 50 Ohm Impedance – Designed to overcome metal RF obstructions

Controller & Reader Kit

• CV-603PS-K1
  Cabinet with MProx-BLE Controller, 12 VDC Power Supply, Transformer, (1) CV-7400 AWID/HID Protocol Reader, and (1) 60-21C003 HID Protocol Proximity Tag – Small Access Control System

Wireless Key Fob

• CV-TXM-2
  2-Button, 433 MHz Key Fob for MProx-BLE Controller
• CV-TXM-2B
  2-Button, 433 MHz Key Fobs for MProx-BLE Controller – Pack of 10

Protocol Readers & Credentials

• CV-603VR10
  Virtual Remote License Key – Pack of 10
• CV-603VR50
  Virtual Remote License Key – Pack of 50
• CV-7400
  Narrow Compact HID/AWID Protocol Proximity Reader – 4” to 5” Range

Compatible Proximity Cards & Key Tags

• CV-CSA
  AWID Format Proximity Cards, Clamshell Style – Pack of 10
• CV-CSH
  HID Format Clamshell Proximity Card – Pack of 10
• CV-ISA
  AWID Format ISO Proximity Card – Pack of 10
• CV-ISH
  HID Format ISO Proximity Card – Pack of 10
• CV-KTA
  AWID Format Proximity Key Tag – Pack of 25
• CV-KTH
  HID Format Proximity Key Tag – Pack of 25
