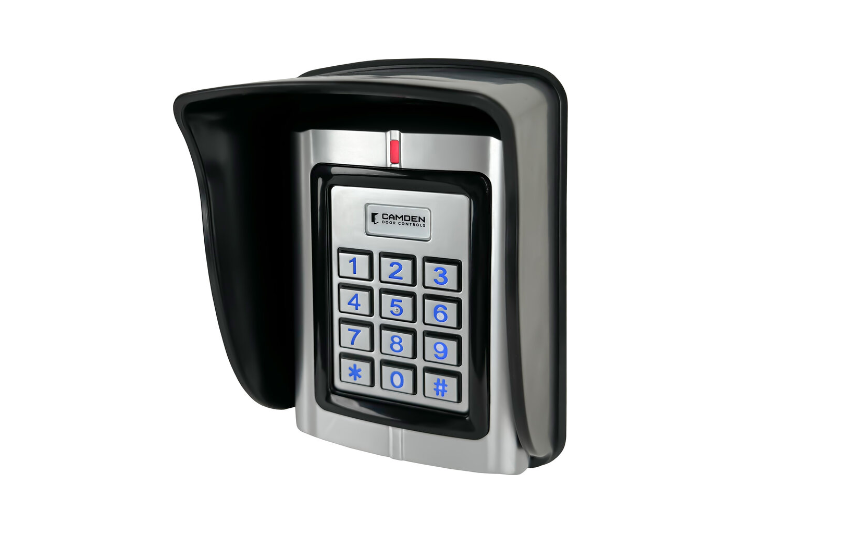

The Camden CV-550SPK is a durable and reliable access control solution designed for high-traffic environments that require both weatherproof and vandal-resistant performance. Perfect for commercial, industrial, and institutional use, this versatile single-door system is engineered to handle demanding conditions while offering seamless integration into existing access control systems.

With its sturdy cast metal housing, illuminated keypad, and built-in proximity reader, the CV-550SPK supports up to 20,000 users. Its flexibility makes it ideal for professional offices, schools, and commercial buildings. The reader’s 26-bit Wiegand input/output also allows it to function as a dual-credential system, offering both proximity card and PIN-based access.

Key Features:

• Up to 20,000 users with card, PIN, or card + PIN options
• Backlit, vandal-resistant keypad with heavy-duty cast metal construction
• Weatherproof IP68 rating, designed for both indoor and outdoor use
• Supports multiple card formats, including HID (26, 34, and 37-bit) and EM
• Batch card/tag enrollment for easy configuration
• Form 'C' relay output for door control and alarm integration
• Tamper alarm output and request-to-exit input for added security
• Adjustable door open time and alarm time for customizable access control
• Wiegand output for seamless integration with other access control systems
• External Wiegand input for additional card readers
• 3-year warranty for peace of mind

Specifications:

• Voltage: 12 VDC ±10%
• User Codes: Up to 20,000
• IP Rating: IP68 (weather-resistant)
• Idle Current: 25 mA
• Relay Output: 1 Form 'C'
• Contact Rating: 1 Amp @ 30 VDC
• Alarm Output Load: 1 Amp @ 30 VDC
• Card Read Distance: Up to 2" (50mm)
• Card Frequency: 125 kHz (EM and HID)
• Card Format: 22 to 66 Bit Wiegand
• Keypad Format: 4 Bit, 8 Bit, and Virtual Card Number
• Operating Temperature: -49°F to 113°F (-45°C to 55°C)
• Dimensions: 5-7/8" H x 4-1/8" W x 3-1/2" D (150mm x 104mm x 90mm with weather shield)

Models:

• CV-550SPK: Stand-alone proximity reader & keypad with 20,000 user capacity
• CV-7400: HID Dual Format Reader (compatible with CV-550SPK)
• CV-CSH: HID Format Clamshell Prox. Card (Package of 10)
• CV-ISH: HID Format ISO Prox. Card (Package of 10)
• CV-KTH: HID Format Prox. Key Tag (Package of 25)
• CV-KTE: EM Format Prox. Tag (Package of 25)

The CV-550SPK is engineered for flexibility, durability, and ease of use, making it the ideal solution for secure access in a wide range of environments. Whether you're securing a single door or integrating into an advanced access system, this keypad provides reliable performance with maximum user capacity.
