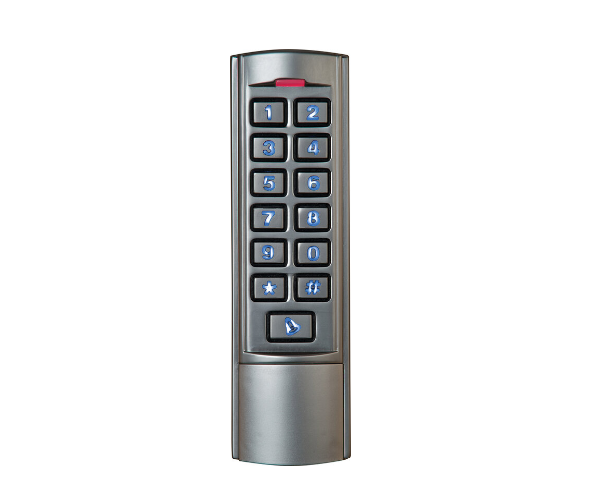

The Camden CV-110SPK is a compact, single-door, multifunction standalone keypad designed for up to 2,000 users. It offers multiple authentication options, including card-only, PIN-only, or a combination of both. With fully potted electronics, the unit is waterproof and rated IP68 for durability in harsh environments. The built-in 125kHz EM card proximity reader provides seamless integration, while the 26-bit Wiegand input and output allows the CV-110SPK to function as a dual credential (proximity reader and keypad) access control device.

FEATURES:

• Supports up to 2,000 users with cards or tags
• Backlit keys for easy visibility in low light
• Zinc alloy electroplated anti-vandal construction for added security
• Weatherproof and IP68 rated, perfect for outdoor use
• Fully programmable from the keypad for easy setup
• Adjustable settings for door output time, alarm time, and door open time
• Low power consumption for energy efficiency
• Anti-tamper protection with a built-in light-dependent resistor
• Short circuit protection for the output
• 8-bit burst (keypad) and 26-bit (reader) Wiegand output for access control system integration
• 3-year warranty

SPECIFICATIONS:

• Voltage: 12 VDC
• Users: Up to 2,000
• Reader Format: EM Format
• Current Draw: 60 mA
• Contact Type: (1) Form 'C' Contact, Rated 3 A @ 30 VDC
• Alarm Output: 20 mA
• Protection: IP68 rated
• Door Delay Time: Adjustable from 0 to 99 seconds
• Alarm Time: Adjustable from 0 to 3 minutes
• Wiegand Interface: 8-bit burst (for PIN codes), 26-bit (for cards)
• Temperature Range: -49°F to 140°F (-45°C to 60°C)
• Dimensions: 5-7/8” H x 1-3/4” W x 1” D (150mm x 44mm x 25mm)

MODELS:

Compatible Prox. Cards & Key Tags

• CV-CSE: EM Format ISO Prox. Card, Package of 10
• CV-CSE-B: EM Format ISO Prox. Card, Package of 100
• CV-KTE: EM Format Prox. Tag, Package of 2
