BEA Sensors 10SSTI — BEA Motion Sensor Active infrared safety sensor, door mounted, horizontal or vertical mounting, 12 to 24 V AC/DC

BEA / BEA Sensors

10SSTI — BEA Motion Sensor

Active infrared safety sensor, door mounted, horizontal or vertical mounting, 12 to 24 V AC/DC

The BEA 10SSTI SuperScan door-mounted active infrared presence sensor from North Shore Commercial Door is designed for commercial automatic pedestrian swing doors, revolving doors, folding and low-energy doors. Use it on a SMR or non-SMR system. You can create a daisy chain with up to nine slave modules. BEA's SuperScan 10SSTI sensor uses triangulation to detect the presence of pedestrians to eliminate false detections caused by varying floor and environment conditions for narrow or wide doors. To eliminate unwanted detection of guide rails or walls, each module detection zone can be angled independently. Unlike other door-mounted sensing devices, this SuperScan sensor's unique electronic architecture allows the detection modules to be mounted near the top of the door, out of harm's way. A rotating cam is used for the range adjustment of the detection zone. Coupled with BEA's Bodyguard overhead presence sensor, the SuperScan 10SSTI meets ANSI 156.10 standard for swing doors. Add slave modules to the master module to alter width patterns.

Each SuperScan module consists of two optics, a transmitter and a receiver. Each module functions independently of the other modules. The transmitter emits a precise beam, which measures approximately 4 inches in diameter at a distance of 8 feet. The receiver, in turn, receives the infrared beam reflected off of the floor. This transmission and reception forms a detection triangle, which is the basic premise of detection (called triangulation). Should this angle be interrupted, detection will occur. Detection will not be affected by the color or background of the object that interrupts the angle.

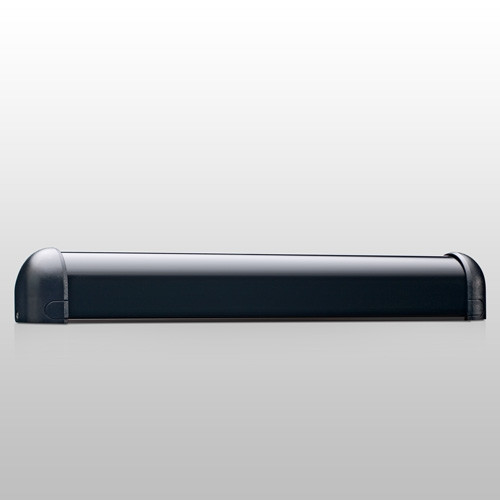

The SuperScan I 10SSTI Includes: 1 Master module in one housing. Overall length is 34.5 in. end cap to end cap.

Product Highlights:

• Item # 10SSTI


• Door-mounted focused active infrared presence detector


• Each module consists of two optics, transmitter, receiver


• 34.5" length; black housing


• Materials: aluminum, ABS plastic/acrylic


• Triangulates distance


• For commercial automatic pedestrian swing doors, revolving doors, folding and low-energy doors


• Field cut housing to desired door widths


• Meets ANSI 156.10 standard for swing doors when coupled with BEA Bodyguard overhead sensor


• Master with up to eight monitored slaves, nine non-monitored slaves


• Adjust relay hold time from .1 to 4.5 seconds


• Can be set to background analysis mode to reduce the chance of non-detection from faulty environment situations


• Detection range up to 8'; infinite presence detection


• Supply voltage: 12 to 24 VAC ± 10% / 12 to 24 VDC + 10%


• Output: single relay


• Degree of protection: IP54


• Maximum contact rating:1 A @ 30 V (resistive)


• Hold time: 0.1 to 4.5 seconds


• Red LED = detection


• Green LED = active output


• Operating temperature range: -30? F to 140? F


• Master: 10.91" x 1.5"/Slave: 8.75" x 1.5"

Technical Information:

• Technology: Focused Active Infrared

• Detection Mode: Presence

• Measurement of Distance: Triangulation

• Supply Voltage: 12 to 24 VAC ± 10% / 12 to 24 VDC + 10%

• Detection Range: 0 in. to 96 in. (0 ft. to 8 ft.)

• Detection Signal Duration: Infinite Presence Detection

• Output: Single Relay



  • Maximum Contact Rating: 1 A @ 30 V (resistive)


  • Hold Time: 0.1 to 4.5 Seconds





• LED Indications:



  • Master: Red LED = Detection


  • Green LED = Active Output


  • Slave: Red LED = Detection





• Operating Temperature Range: -30? F to 140? F

• PCB Dimensions:



  • Master: 10.91 in x 1.5 in


  • Slave: 8.75 in x 1.5 in





• Max. Number of Slaves:



  • Standard: 9


  • With Monitoring: 8 max.





• Function Selections:



  • Detection Mode - NO or NC


  • Normal Mode or Background Analysis Mode





• Response Time: < 50 ms

• Material: Aluminum, ABS plastic / acrylic

• Housing Color: Black


• Degree of Protection: IP54
