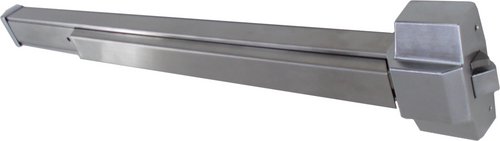

Arrow ED910-36 32D Exit Device Rim Exit Device, 36", Satin Stainless Steel

ED910-36 32D Arrow Exit Device

Rim Exit Device, 36", Satin Stainless Steel

The ED910 and PEC910 exit devices are similar in
function, yet different in form. The ED910 is a value
exit devise for everyday solutions whereas the
PEC910 features a one-piece design with a patented
permanent end cap – ideal for high traffic or high
vandalism areas. Both products are BHMA Grade
One certified and designed to replace or upgrade
existing devices. Each also comes with an extended
10-year warranty.

The Arrow ED910 is a value exit device that is BHMA Grade 1 Certified. The ED910 is designed to replace or upgrade existing exit devices and comes with an extended 10-year warranty.

Certification

• ANSI/BHMA A156.3, Grade 1


• Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard.


• All exit devices comply with life safety code NFPA 101

Features

Chassis: Stamped steel materials

Chassis cover: Cast zinc

Door Types: Fits 1-3/4" (44.5 mm) doors standard.

Door Width: For 48" doors, can be cut for a minimum 43" door width. For 36" doors, can be cut for a minimum 31" door width.

Stile: 4-1/2" (144.30mm) minimum

Mounting: Supplied with wood and machine screws.

Handing: Reversible

Dogging: Hex-type holds down.

Latchbolt: Stainless steel

Rail Assembly: Powder Coated Steel, stainless steel optional

Strike: ES90 Strike

Warranty: 10 year warranty

Packaging: 4 units per master carton

Finishes: AL Aluminum (sprayed finish),US32D Satin Stainless Steel, 613E Dark Bronze Equivalent

Precision Install with the template,
built-in end cap & slide-in mounting
• Patented Permanent End Cap and template
• Seamless one-piece design

Works with all Arrow S1150 and S1250 trims
• All metal construction
• For 31" to 36" door widths

*Images may not represent actual product and finish.
