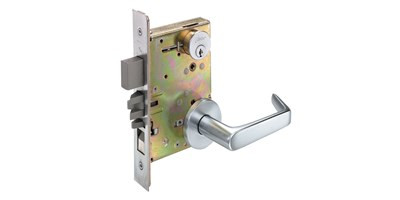

Arrow BM Mortise Lever Set.

BM Series Template- Lock Body

BM Template- Strike

BM Series Cutsheet

BM Series Template- Trim

Arrow BM Series Lever Mortise Locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. They are engineered for strength and  performance, and precisely manufactured to exacting standards.

Features:

• Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
• Door Thickness: 1-3/4" (4mm) standard.
• Backset: 2-3/4" (70mm).
• Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
• Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Faceplate: Wrought brass or bronze, attached by machine screws to lockcase front.
• Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
• Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
• Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.
• Hub: Lever: nickel steel, 5/16" (8mm).
• Spacing: Center to center, hub to cylinder: 3-5/8" (92mm).
• Center to center, hub to turnpiece: 2-7/16" (62 mm).
• Strike: Wrought brass or bronze, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center.
• Keys: Two nickel silver standard.

Warranty

• Five-year limited.

Certification

• Meets ANSI A156.13 Series 1000, Operational Grade 1.
• Meets FF-H-106C, Series 86 and 87.
• All locks UL/ULc listed for A Label and lesser class doors, 4" (122cm) x 10"
• (305cm) single or 8" (244cm) x 10" (305cm) pair. Letter F and UL
• symbol on armored front indicate listing. California State
• Reference Code All levers with returns comply; levers return to within 1/2" (13mm) of door face.



ADA/Americans with Disabilities Act:
Acceptable Door Hardware: Section 4.13.9

Handles, pulls, latches and other operating devices on accessible
doors shall have a shape that is easy to grasp with one hand and
does not require grasping, tight pinching or twisting of the wrist
to operate. Lever operatedmechanisms, push-type mechanisms
and “U” shaped handles are acceptable designs.

Lever Designs

Functions
