AP1140 US32DMS — Rockwood Door Pulls, Push and Pull Plates Arm Pull, 1-1/2" Pull Width, Satin Stainless Steel Microshield

AP1140 US32DMS — Rockwood Door Pulls, Push and Pull Plates

Arm Pull, 1-1/2" Pull Width, Satin Stainless Steel Microshield

Today’s environment requires less contact with surfaces that are commonly touched to help reduce
the transmission of germs. A hands-free door opening can minimize a multitude of skin-to-surface
touchpoints throughout the day.
Rockwood arm and foot pulls are easy, cost-effective options for hands-free door operation in new and
pre-existing aluminum, metal or wood openings, such as entrances, corridors and restrooms.

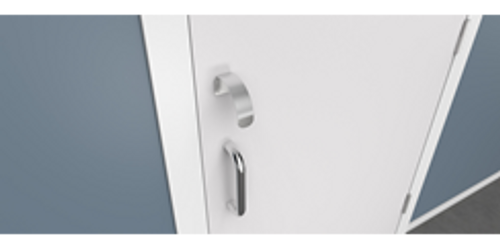

The AP1140 can be mounted above a
pre-existing door pull for a quick hands-free
addition, or can be used independently

Dimensions:

Base Plate Width: 2"
Pull Width: 1-1/2"
Projection: 4-1/2"
Clearance: 4-3/8"

Material:

1/8" Thick
Stainless Steel

APPLICATION:

Restrooms, entrances, corridors, any door with a pre-existing door pull.

Apply above existing door pull or as new application.
'How to Use' sticker comes with product to be applied
to door.

FASTENER:

4 - #10 x 1 1/4" Flat Head Sheet Metal Screw (Standard)

FASTENER OPTIONS:
Sex Bolts
Torx Screws
