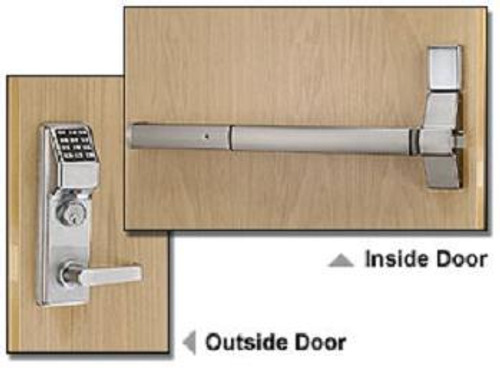

Alarm Lock TRILOGY Exit/Panic Device Pin Code Access

Alarm Lock - Trilogy ETDL Digital Exit Trim with Audit Trail (Panic Exit Device must be ordered separately)

S1G - Straight Lever

Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on the spindle. Entering access code will allow lever to retract latch. Inside panic bar always provides instant egress. (Temperature Range: +150?F to -20F.)

Fingertip and/or Windows Programmable

2000 User Codes: Master, manager, supervisor and users

Up to 500 Lock/Unlock Schedules (with Time Zone Support)

40,000 event audit trail with time/date stamp for a printable record of door access activity by user, can be polled with the (AL-PCI) Interface Cable & Sofware (sold separately) to any PC using DLWindows Software. Activities included are: unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, unauthorized code attempts, etc

Hand-held infrared (AL-IR1) printer can be used to print on-site from the lock (sold separately).

Data Transfer Module (AL-DTMII) can also be used to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time (sold separately).

Rugged 12-Button Weather Resistant Metal Keypad

Non-Handed; Fully Field Reversible

Door Thickness; 1 3/4" standard. Other thickness please see consult factory.

Generic Rim Cylinder (Schlage C Keyway) & adapter kit included in all locks. Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders (See separately ordered Cylinder Adapter Kit)

Battery operated: uses 5 AA batteries, Audible low battery alert, visual and audible entry indicators

The Trilogy Exit will work with the following Panic Bars:

Von Duprin 99 Series - Corbin ED5000 Series - Yale 7100 Series - Dorma 9300 Series - Arrow 3800 Series - Sargent 8800 Series

Model: Alarm Lock, Trilogy, S1G, ETDLS1G, ETDLS1G26D, ETDLS1G-26D, ETDLS1GUS26D, ETDLS1G US26D, ETDLS1G 26D, ETDLS1G210B, ETDL-S1G-26D, ETDLS1G-US26D, ETDL-S1G US26D, ETDL-S1G 26D. Finishes: Satin Chrome, Oil Rubbed Bronze, Bright Brass

26DV99, US26DV99, V99, 26DA38, US26DA38, A38, 26DC50, US26DC50, C50, 26DCR8, CR8, US26DCR8, 26DD93, D93, US26DD93, 26D-NS8, US26DNS8, NS8, 26DP11, P11, US26DP11, 26DS88, S88, US26DS88, 26DY71, US26DY71, Y71, 10BV99, US10BV99, V99, 03V99, US3V99, V99.
