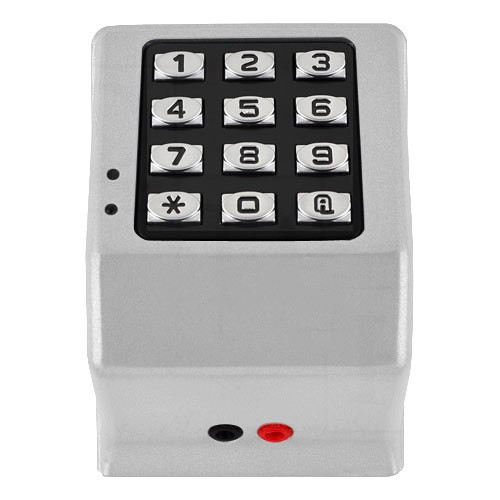

Alarm Lock TRILOGY DK3000 Code Access Weatherproof Keypad

Trilogy DK3000 digital access keypad with PC programming & audit trail

2000 PIN user codes, multilevel security

Ideal for use with 12V or 24V (AC or DC) electric door strikes, mag locks or Alarm Lock Remote Release Mag Lock Kit (adjacent page)

Wall mount or single gang box

2 High-Current Rated 8A Relays for entry, alarm zone shunting or lock release by real-time schedule

Power Operating voltage 12-24VAC/DC field selectable. Power supply required.

Vandal-resistant, all metal 12-button keypad

Keypad or PC programmable

40,000 Event audit trail report/print to PC or hand held printer or DTMIII Data Module

Timed Egress Input Selectable door open times 5, 10 or 15 seconds

500 Scheduled events & real time clock

Tamper supervised (reportable to alarm system)

Remote release feature; request-to-exit input

Weatherproof -31˚ to 151˚F (-35˚ to +66˚C)

PC programmable and receive audit trail from the lock to PC with the (AL-PCI) Interface Cable & Sofware(sold separately) with any PC using DLWindows Software.

Hand-held infrared(AL-IR1) printer can be used to print on-site from the lock (sold separately).

Data Transfer Module (AL-DTMII) can also be used to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time (sold separately).

Wiring : Unit provides flying leads for power, relays, tamper and remote Release.

I/O Specs: 2 form C relays 5AMP minimum contact rating. Red & green LED Indicators. 1 remote release input. Sounder and tamper.
