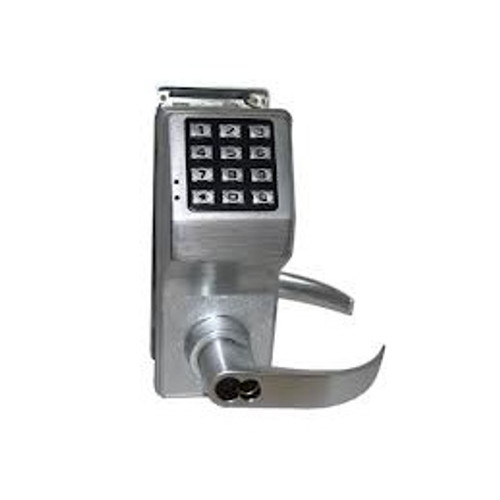

Alarm Lock Trilogy PDL3075IC-S Trilogy Proximity/Keypad Lock w/ Audit Trail Prep For Schlage Interchangeable Core (Less Core)

$1,404.38

(No reviews yet) Write a Review

Brand: Alarm Lock Trilogy
SKU:: PDL3075IC-S-US26D
UPC:: 38266965979
Condition:: New
UPC Code:: 38266965979

$1,404.38

Description
Show Reviews

Additional Information

Downloads	Alarm Lock PDL3000 Programming Instructions
Manufacturer	Alarm Lock
Model	PDL3075IC-S-US26D
Entry Features	Keypad, Proximity Sensor, Audit Trail
Finish	Optional
Handing	Non-Handed
Backset	2 3/4" Standard. 2 3/8" backset also available.
Door Thickness	1 5/8" to 1 7/8" standard. For 1 3/8" doors use HW567 & HW569 spacers.
Operating Temperature	-31? to +151?F (-35? to +66?C)
Keypad	Weatherproof, all metal, 12-button programmable for multi-level access functions. Proximity antenna housing molded of ultra high strength, impact resistant Lexan®.
HID Proximity Reader	Built-in, weather-sealed HID reader supports virtually all HID cards and HID fob credential formats.
Audit Trail	Lock's activity log can be extracted by using the AL-DTMIII (data transfer module), the AL-PCI2 (PC interface) and/or can be on-site printed using the AL-IR1 (hand-held infrared printer)
Strike	1-1/8” x 2-3/4” T strike standard. With screws for wood or metal jambs. 1 1/4" x 4 7/8". ASA strike also included.
Power	5AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, 60,000 cycles typical.
Door Prep	Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
Programming	Locking modes, event schedules, group, individual, master, management, passage, emergency service codes. Lockout, remote override capability and allowable entry time (3, 10 or 15 seconds), are programmable through the keypad, AL-DTMIII or Alarm Lock's DL-Windows PC Software.
Interchangeable Core Models	Schlage IC Core is not included.
Compliances	BHMA Certified Grade I, heavy duty cylindrical lockset, UL listed to the 10C Positive Pressure Specification. Latchbolt is UL listed and 3-hour fire rated, FCC certified. ADA compliant levers.
ANSI/BHMA	Durable BHMA Grade 1 Lockset
Warranty	2 Year Warranty
Weight	8.0000
