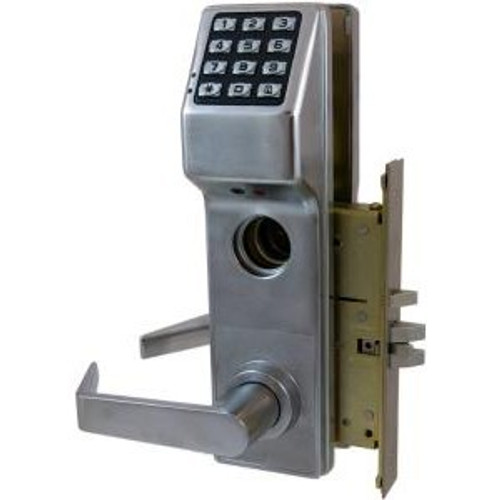

Alarm Lock/Trilogy Alarm Lock DL3575DBL-US26D Trilogy High Security Mortise Digital Keypad Lock w/ Audit Trail Left Hand

Sidebar
Alarm Lock/Trilogy Alarm Lock DL3575DBL-US26D Trilogy High Security Mortise Digital Keypad Lock w/ Audit Trail Left Hand

Alarm Lock/Trilogy Alarm Lock DL3575DBL-US26D Trilogy High Security Mortise Digital Keypad Lock w/ Audit Trail Left Hand

$1,127.00
(No reviews yet) Write a Review
Brand
Alarm Lock Trilogy
SKU:
DL3575DBL-US26D
UPC:
38266962961
Condition:
New
UPC Code:
38266962961
$1,127.00
$1,127.00

Additional Information


















































































Manufacturer
Alarm Lock

Model
DL3575DBL-US26D

Entry Features
Keypad, Audit Trail

Finish
Satin Chrome US26D

Handing
LH - Left Hand

Backset
2 3/4” Standard

Door Thickness
1 5/8" to 1 7/8."

Operation
Advanced digital electronic door lock with audit trail

Operating Temperature
Weatherproof -31? to +151?F (-35? to +66?C)

Keypad
Rugged, vandal-resistant, all metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 15 seconds.

Audit Trail
40,000 entry activity log can be polled to the Data Transfer Module (AL-DTM), any PC using Windows Software, and/or can be on-site printed using the hand-held infrared printer (AL-IR1). Activities included are: unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, unauthorized code attempts, etc.

Strike
1 1/4” x 4 7/8” strike included

Power
5 AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor. 100,000 cycles typical.

Door Prep
Standard ANSI A115 Mortise prep, modified by adding additional through-bolt holes

Standard Key Override Cylinder
1 3/8” (3.5cm) mortise cylinder supplied. Will Accept 1 3/8” to 1 1/2” (3.5 – 3.82cm) mortise Cylinder. Deadbolt function supplied with cloverleaf Cam

Compliances
UL listed to the 10C Positive Pressure Specification and FCC certified. ADA compliant levers.

ANSI/BHMA
Durable BHMA Grade 1 Lockset

Warranty
2 Year Warranty

Weight
12.0000





Alarm Lock/Trilogy Alarm Lock DL3575DBL-US26D Trilogy High Security Mortise Digital Keypad Lock w/ Audit Trail Left Hand
