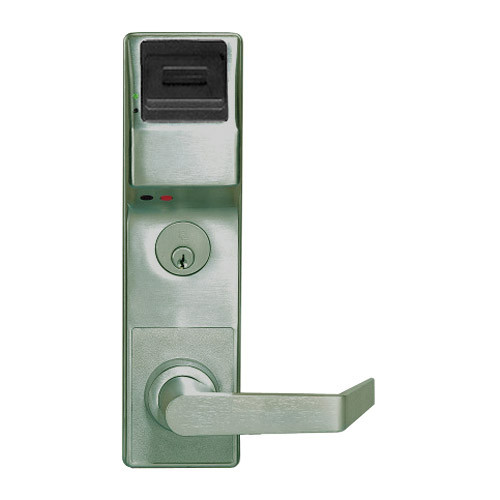

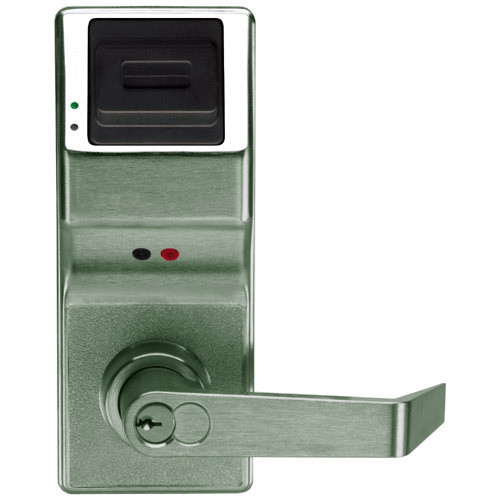

ALARM LOCK PL3000 Series Trilogy T3 Prox Cards Only Keyless Lock

Field-proven, rugged keypad-less lock with ultra-vandal-proof prox reader built in. Standalone lock no wiring; long-life battery operation. (Key override with IC core option.)

Users are individually programmed to gain access only with HID prox cards, prox keyfobs or prox tags, for the highest level of vandal-resistance and dependability available.

2000 individual users gain entry access using new or legacy HID Prox ID cards, prox keyfobs or prox tags. No keys or PIN codes to record or administer. 100% Prox, keypad-less security for fastest entrant processing and the highest level of dependable, vandal-deterrent standalone access control locking.

Will read most HID card and keyfob formats.

9 prox programming cards included

Use the same ID cards as hardwired access systems & install in an hour

Built-in HID Prox reader for entry with HID prox ID cards and keyfob credentials

Tap and Add batch ID card enrollment mode at lock or download from a PC

Program at keypad or with PC-and/or data-transfer module

2000 user codes (3-6 digits) including: Master, manager, supervisor and basic user. Also one-time entry service code

500 scheduled events, including 4quick schedulesfor programming the 4 most common time schedules in one step

Quick passage mode (without being in program mode)

40,000  event audit trail with time/date stamp for a printable record of door access activity by user, can be polled with the (AL-PCI) Interface Cable & Sofware(sold separately) to any PC using DLWindows Software. Activities included are: unlock/lock events, program mode changes, user entry, remote release events, unauthorized code attempts, etc

Hand-held infrared(AL-IR1) printer can be used to print on-site from the lock (sold separately).

Data Transfer Module (AL-DTMII) can also be used to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time (sold separately).

Weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151 F to -31 F (+66 C to -35 C)

Real time clock allows logging of events to within 1 second of accuracy

4 time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock

Battery operated; Uses 5 AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drivemotor. 60,000 cycles typical.

Available in standard key override and interchangeable core models PDL3000IC accepting 6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.

Models: Alarm Lock, Trilogy, PL3000, PL300026D, PL3000-26D, PL3000US26D, PL3000 US26D, PL3000 26D, PL3000-IC, PL3000-IC26D, PL3000-IC-26D, PL3000-ICUS26D, PL3000-IC US26D, PL3000-IC 26D, PL3000IC, PL3000IC26D, PL3000IC-26D, PL3000ICUS26D, PL3000IC US26D, PL3000IC 26D. Finishes: Satin Chrome
