AIPHONE | JP-DV Video Door Station, Surface Mount, 24 VDC, 3-7/8" Width x 1" Depth x 6-13/16" Height

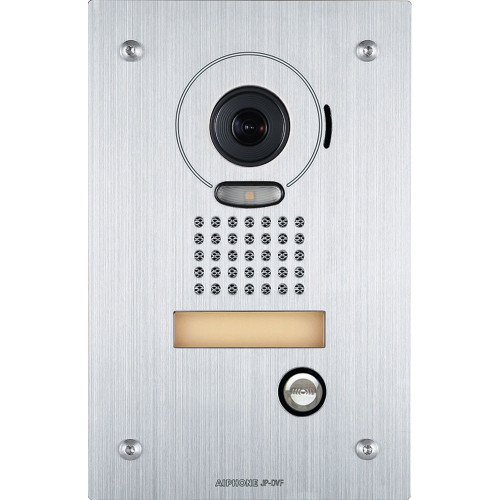

Video Door Station-The JP-DVF is a vandal resistant, flush mount door station used with the JP hands-free, color video entry series. The unit comes complete with mounting box to ease installation. The JP-DVF faceplate is stainless steel, the call button is metal and the camera is protected with a clear polycarbonate lens cover. The JP-DVF features a color CMOS camera, speaker and mic for communication, illuminated call directory and white illumination LED for low light conditions.
FEATURES;
Wide angle camera allows the user to view up to 170° of the entry area
Digital Pan, Tilt and Zoom control from Master Station
LED illumination automatically turns on in low light conditions
Simple 2-conductor wiring
Mounts directly to wall or 1-gang box with MKW-P mounting plate
Housed in an aluminum diecast
Weather resistant
Type of communication
Open voice hands-free auto-voice actuation
Camera Type: 1/4" CMOS
Viewing Angle: Wide (approx. 100° x 170°) with Digital Pan, Tilt, and Zoom
Mounting
Mounts directly to wall or 1-gang box with MKW-P mounting plate
Wire Type
2-cond., low cap, non-shielded - use Aiphone #871802
Wire Distance
165' (22AWG), 300' (18AWG)
Temperature Rating
14° ~ 140°F (-10°~60°C)
Dimensions
6-13/16" H x 3-7/8" W x 1" D
JP-DV COMPONENTS Video Door Station, Surface Mount Zinc Die Cast Cover **Images may not represent actual product and finish.
