Aiphone JP-8Z Video Intercom Distribution Adapter, Category 5e, For Video Sub Master Station
- Brand
- Aiphone Security
- SKU:
- JP-8Z
- Condition:
- New
- UPC Code:
- 46171600
JP-8Z
Video Intercom Distribution Adapter, Category 5e, For Video Sub Master Station

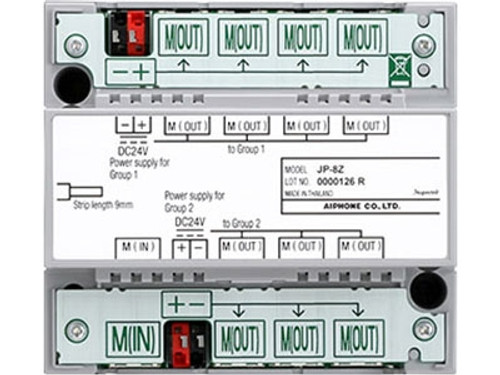

The JP-8Z is a distribution adaptor for the JM Series. The adaptor is utilized when homerun wiring is desired. The JP-4MED master station and each JP-4HD sub-master station will connect to this adaptor using CAT-5e/CAT-6 cable. The JP-8Z can surface mount using the mounting holes or with the W-DIN11 mounting rail. One or two PS-2420UL power supplies are used, depending on how many sub master stations are connected.
FEATURES;
Homerun up to 7 Sub Master Stations
Wire Type
JP-8Z to JP-4MED/JP-4HD: Cat-5e or Cat-6
Power Supply to JP-8Z: 2-cond., mid-cap,
solid, non-shielded - use Aiphone #871802
Wire Distance
JP-8Z to JP-4HD: 165'
JP-4MED to JP-8Z: 650'
JP-8Z to PS-2420UL: 33'
Temperature Rating
32-104°F (0-40°C)
Dimensions
4-5/16" H x 4-7/8" W x 2-7/16" D
