Adams Rite 7130/7131 Electric Strikes designed to cover or converting from an MS pivoted-bolt deadlock to deadlatch.

$195.00

(No reviews yet) Write a Review

Brand: Adams Rite
SKU:: 7130 / 7131

$195.00

Current Stock:

Quantity:

$195.00

Description
Show Reviews

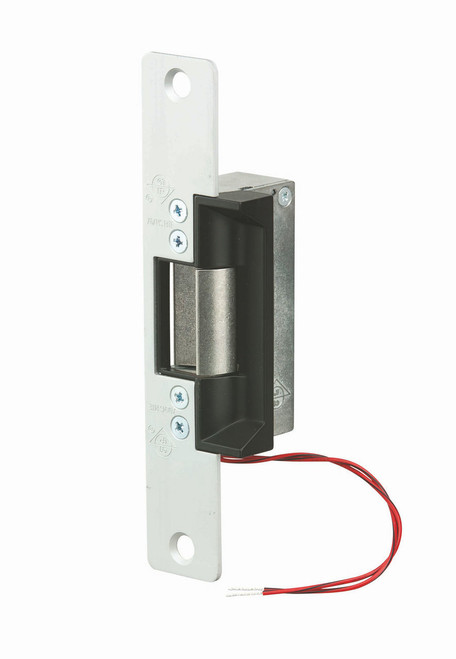

Adams Rite Electric Strikes 7130/7131: Large 6-7/8" faceplate is designed to cover strike opening when converting from an MS® pivoted-bolt deadlock to deadlatch.

VOLTAGE
Available in 12 or 24 volt AC and DC. Continuous units are silent, AC intermittent units "buzz" on operation.
CURRENT DRAW/AMPS
Volts	AC Int.	DC Cont.
12	1.42	.33
24	.74	.17

Fail Secure - when electricity is off, unit is UNLOCKED

Fail Safe - when electricity is off, unit is LOCKED

Features:

Case: Approx. 1" x 3-3/8" x 1-5/8" deep. Zinc-aluminum alloy.

Fail Safe/Fail Secure: Field convertible from one mode to the other.
However, AC intermittent solenoid must not be used continuously in either.

Faceplate: Measures 1-1/4" x 6-7/8".
* 130 has flat faceplate
* 7131 is radius to match nose on inactive leaf in a pair of narrow stile glass doors.
Finish: 628 Clear Anodized, 313 Dark Bronze Anodized or 335 Black Anodized.
Strike Opening: 5/8" x 1-7/16" x 1/2" deep. Bolt retainer jaw is stainless steel.
Strike bolt: accepts any Adams Rite 4500/4700/4900 Series dead-latch or cylindrical latches.
ANSI/BHMA Type E09321 (Grade 1) UL Listed for Burglary Resistance.
Cylinder not included: Accepts standard size rim cylinder
