ABH Manufacturing

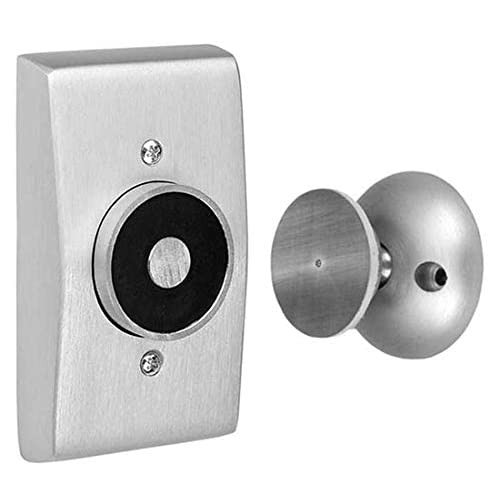

2100 Wall Mount Electromagnetic Door Holder

2100-689 (EA/1)

Recessed Wall Mount Electromagnetic Door Holder, Tri Voltage 12V DC, 24V AC/DC or 120V AC, 1" Extension Included, 35 lb. Holding Force, 689/S1 Painted Aluminum

INFORMATION:

• 2-5/8" total projection from wall to face of door (3-5/8" if using complimentary 1" extension)
• Tri-voltage units for easy stocking and installation 12V DC, 24V AC/DC OR 120V AC
• Provided with one complimentary 1" extension - No charge
• Optional extension rods fill the gap between the magnet and door armature with no special adapter piece required
• 35 lb. holding force
• All metal components - No plastic parts
• UL/ULC listed for smoke barrior or labeled fire doors
• Listed by the California State Fire Marshall
• Outlet box required (not provided)
• Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
• Positive release button alleviates residual magnetism
• Average with per unit = 2.5 lbs.

BRAND INFO:

We carry products from Architectural Builders Hardware (ABH) Manufacturing, Inc. because they produce the highest quality door operating components for a wide variety of commercial door applications. Their products can be found in an incredible number of business campuses, health facilities, sports arenas and educational buildings around the world.

ABH Manufacturing, Inc. door hardware, hinges, latches, pulls and stops are found in those places because of the quality and the great product selection. The easiest way to explain how ABH hardware is used in so many high demand and high traffic areas is to say that ABH knows what their customers need.

One example of this is the Building Information Model (BIM) feature that works with Autodesk Revit software. This digital modeling package allows architects and engineers as well as every other members of the building team to work together and develop a 3 dimensional representation of the entire project.

ABH also demonstrates their innovative approach through their membership in the US Green Building Council. This organization is committed to building a green future in America that will benefit the entire planet, and has the important LEED (Leadership in Energy and Environmental Design) designation.

Look to ABH Manufacturing, Inc. for all your most demanding commercial door applications. We know you won’t be disappointed.
